Savox SA-1258TG 6.0V Speed: 0.08 Torque: 12kg

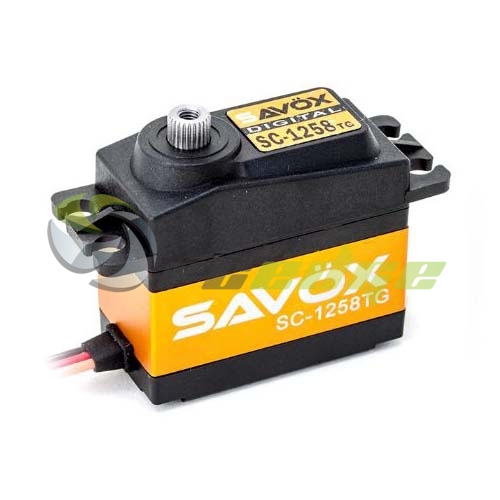

Savox SA-1258TG - Standard Size Coreless Digital Servo .08/166 (Minimized Backlash)

The SA-1258TG servo is a high torque servo and is perfect for those who are looking for a minimized backlash to use on flying surfaces of RC planes.

Features:

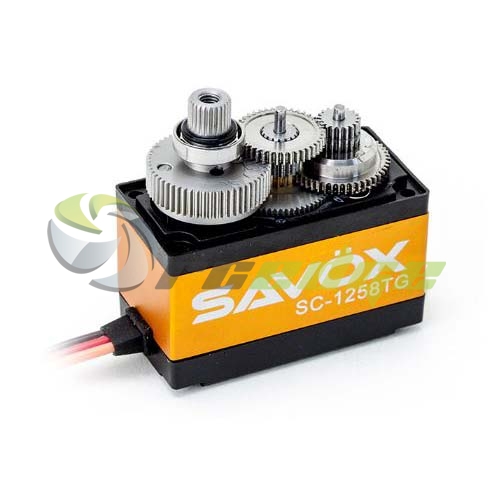

• Extremely strong titanium gears ensure long-life, durability, and light weight.
• Aluminium middle case allows for cooler operating temperatures.
• Minimized backlash for precision aerobatic air plane use.

Specifications:

• Torque @ 4.8v - 9.6kg / 133.3oz-in
• Torque @ 6v - 12.0kg / 166.6oz-in
• Speed @ 4.8v - 0.10 sec/60 deg
• Speed @ 6v - 0.08 sec/60 deg

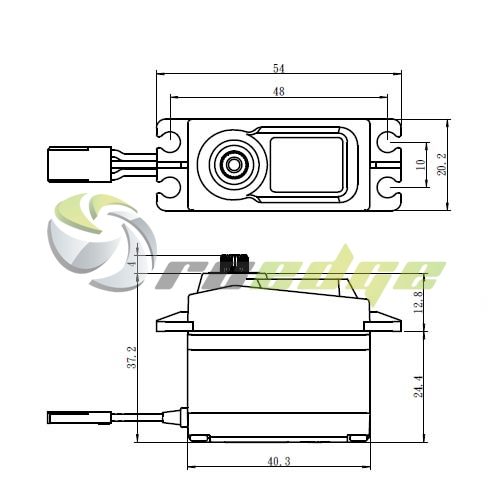

• Dimensions L x W x H (mm): 40.8 x 20.2 x 37.2
• Weight: 64g

Technical Details:

• Operating Temperature: -10 to 50 deg Celcius
• Running Current (no load): 100mA @4.8V, 120mA @6.0V
• Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 250 plus/minus 5mm251 plus/minus 5mm252 plus/minus 5mm25 Tooth
• Bearings: 2BB
• Operating Travel: 100 deg (1000 to 2000 micro second)
• Neutral Position: 1500 micro second
• Pulse Width Range: 800 to 2200 micro second
• Maximum Travel: Appx 130 deg (900 to 2100 micro second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
