EV Peak PJ1 Power Supply 1360 Watt 60A
ArrayEV-Peak PJ1 1350W/60A Power Supply

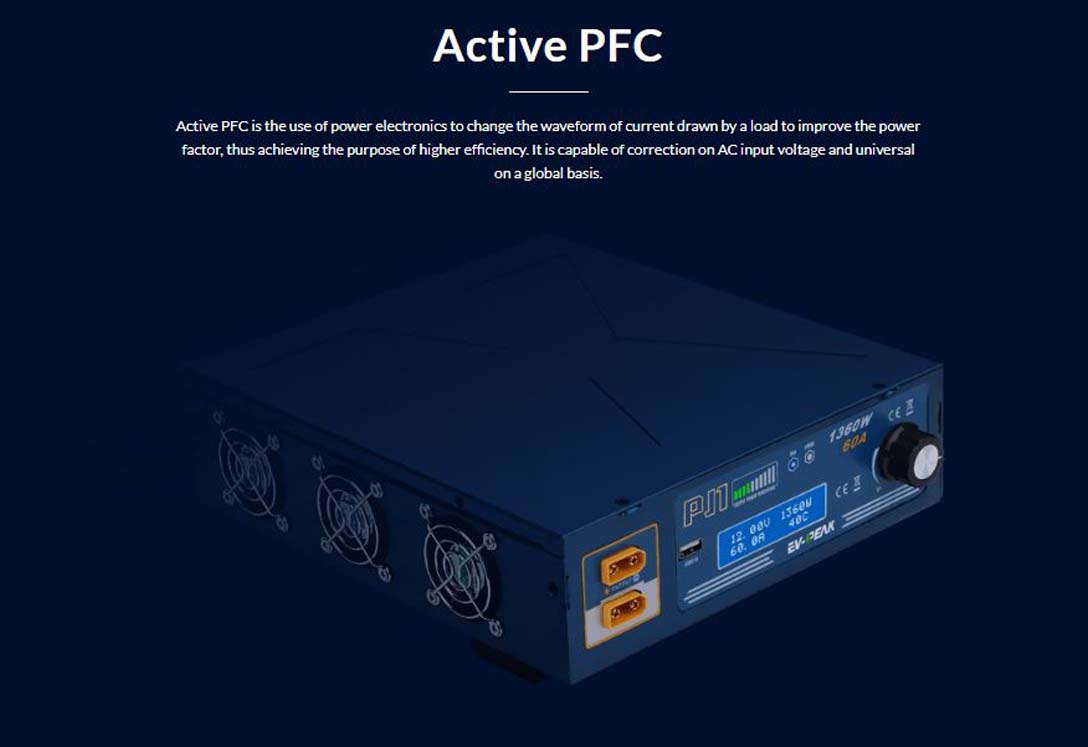

The P series is the professional high power high output power supply. With active PFC technology, It is capable of correction on AC input voltage and universal on a global basis.

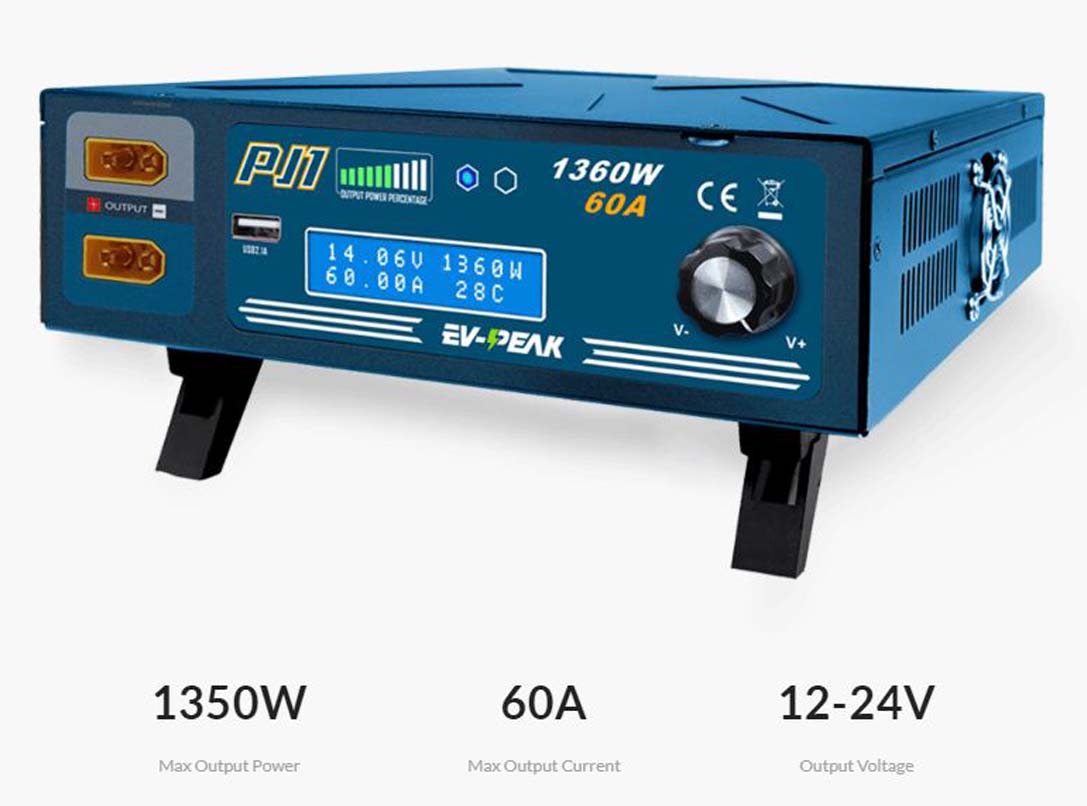

EV-Peak PJ1 is a high power, adjustable double channel DC output, the maximum can ascend to 1350W / 60A switching power supply.
Specifications:
Input Voltage: | 110V or 220V |

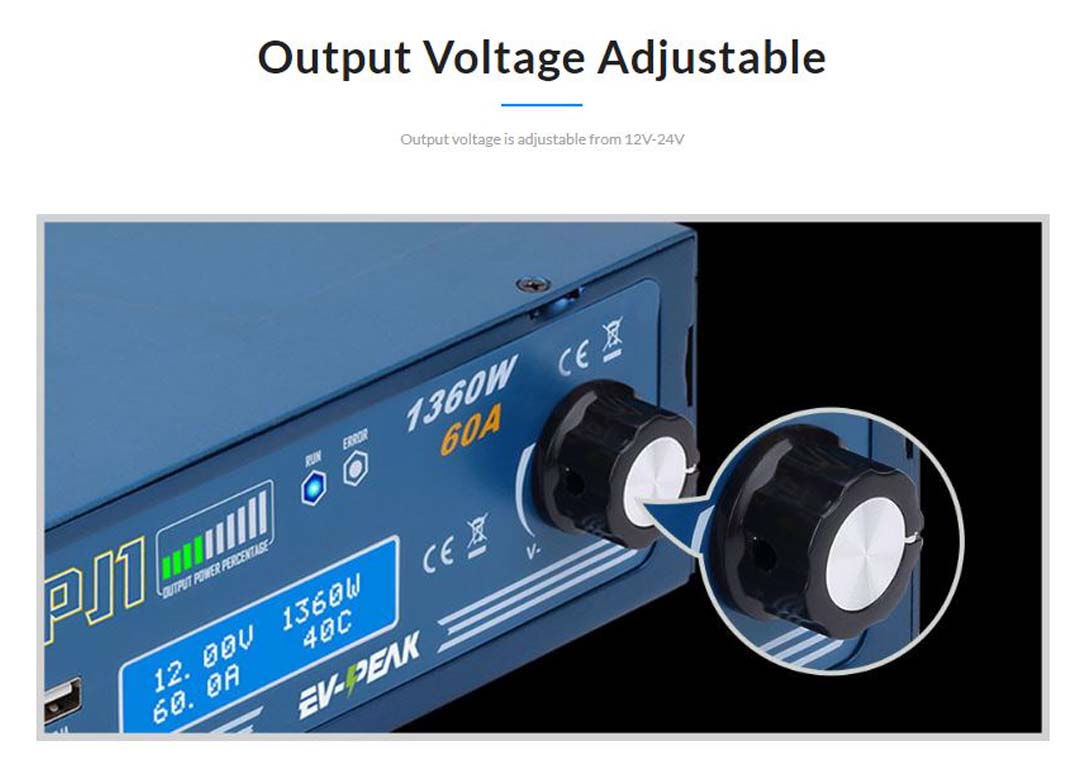

Output Voltage: | 11-24V |
Output Current: | 0.1-60A |
Current Overload Protection: | Equel or less than 65A |
Output Voltage Riplle: | 250mV |
Power Efficiency: | 88% |
Power Factor: | 0.98 |
Over Temperature Protection: | Equal or less than 70 deg Celcius |
Operating Temperature: | 0-40 deg Celcius |
Cooling Method: | Cooling Fan |
Dimension: | 235 x 285 x 85mm |
Weight: | 3400h |
