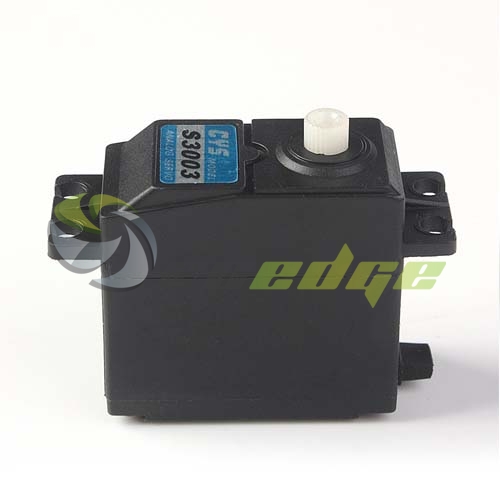

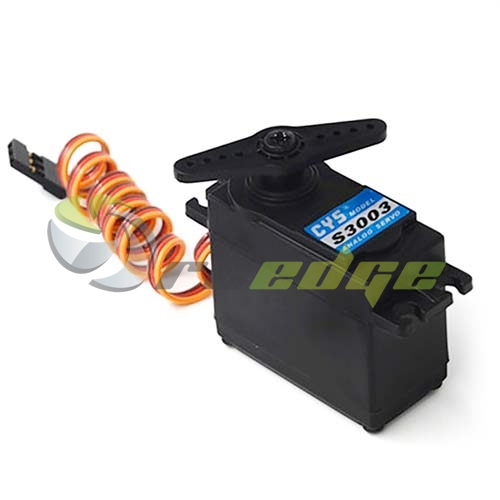

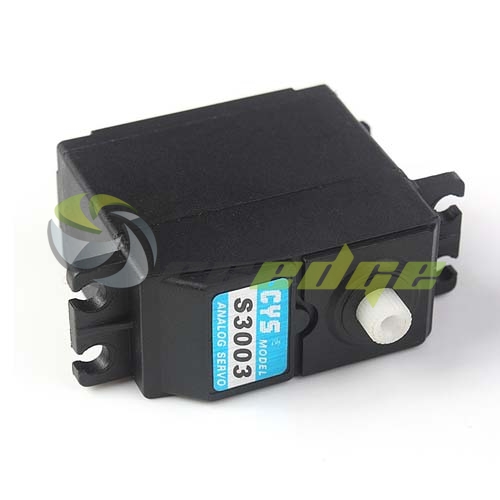

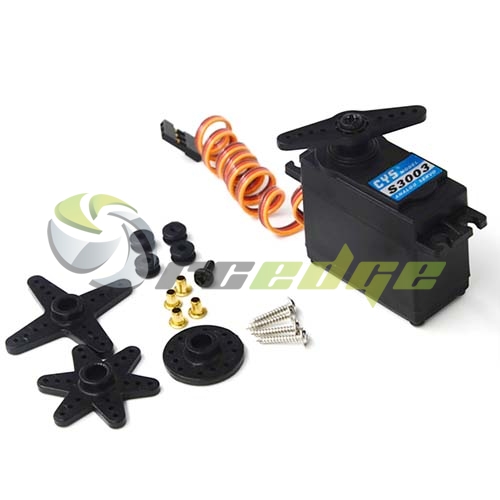

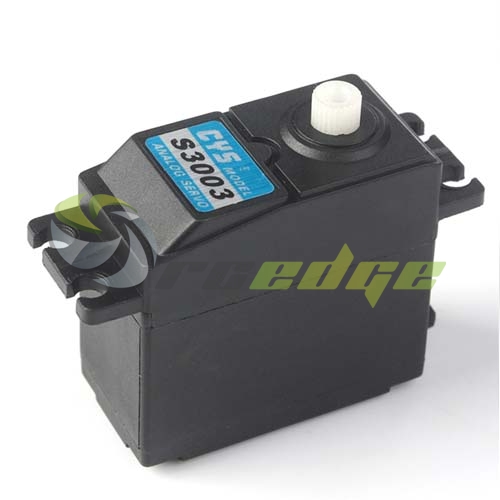

CYS S3003 Analog 7.4V Speed: 0.10 Torque: 3.5kg
ArrayR 125,00
Description
- Item NO.: CYS-S3003
- Description : 3Kg Standard Size Analog Servo
- Size : 40.8 x 20.1 x 38mm
- Torque : 3.0Kg.cm to 3.5Kg.cm
- Speed : 0.12sec to 0.12sec/60 deg
- Voltage : 6.0Volts to 7.4Volts
- Weight : 36g plus/minus 1g
Specifications:
| Type | Analog |
|---|---|
| Weight | 36g plus/minus 1g |
| Size | 40.8 x 20.1 x 38mm |
| Control System | (+)Pulse Width Control 1500micro sec Neutral |
| Operating Voltage | 6.0 to 7.4Volts |
| Operating Temperature Range | -10 to 50 deg Celcius |
| Operating Speed (6.0V) | 0.12sec/60deg at no load |
| Operating Speed (7.4V) | 0.10sec/60deg at no load |
| Stall Torque (6.0V) | 3.0kg.cm |
| Stall Torque (7.4V) | 3.5kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 micro sec |
| Direction | Anticlockwise/Pulse Traveling 1000 to 2000 micro sec |
| Current Drain (6.0V) | 20mA/idle and 160mA no load operating |
| Current Drain (7.4V) | 20mA/idle and 200mA no load operating |
| Stall Current | 0.8A/0.9A |
| Dead Band Width | 4 micro sec |
| Motor Type | Iron Motor |
| Bearing Type | Dual Ball Bearing x2 |
| Horn gear spline | 25T |
| Gear Type | Plastic |
| Connector Wire Length | 300mm plus/minus 5mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal |
