CYS S0009 Analog 6.0V Speed: 0.10 Torque: 1.5kg
ArrayR 90,00
Description

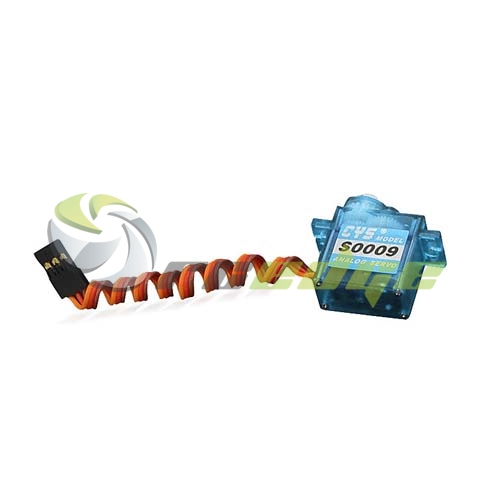

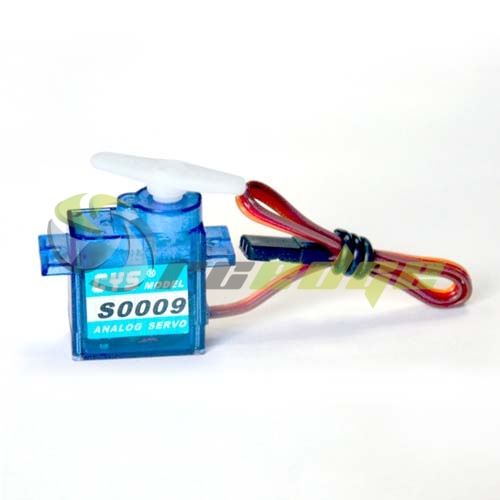

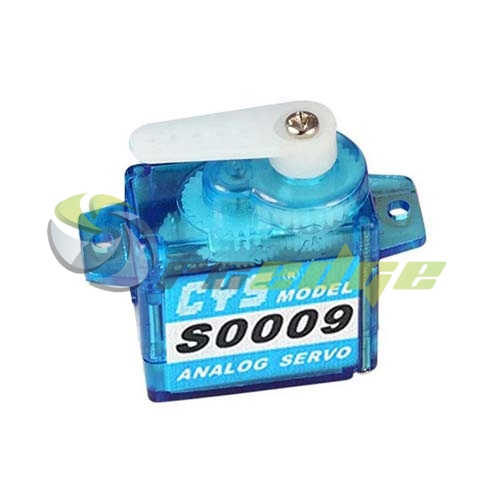

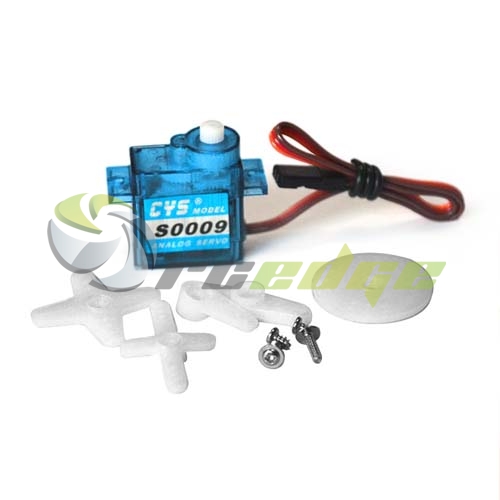

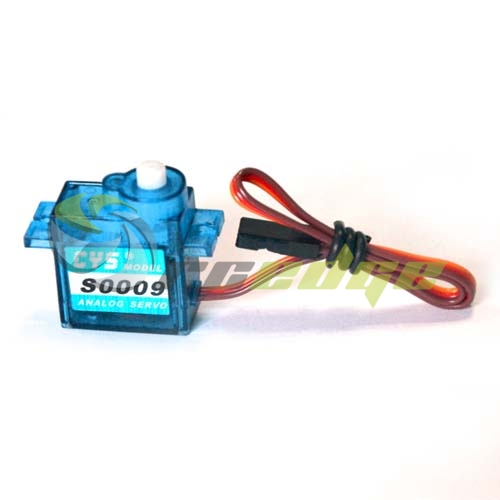

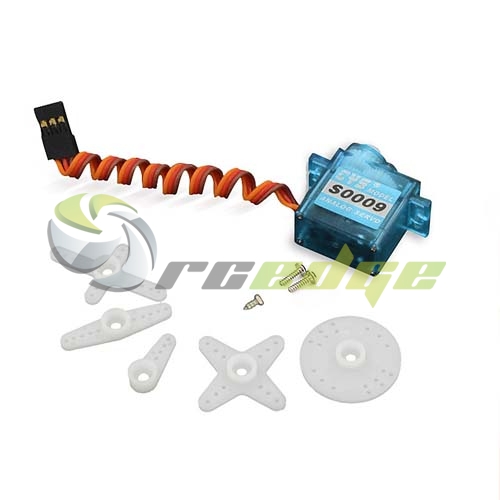

- Item NO.: CYS-S0009 9g servo motor
- Description : 9g analog plastic gear servo 180deg / 360deg rotation servo
- Torque : 1.2Kg.cm to 1.5Kg.cm
- Speed : 0.12sec to 0.10sec/60 deg
- Voltage : 4.8 Volts to 6.0Volts
- Weight :9 plus/minus 1g
Specifications:
| Type | Analog |
|---|---|
| Weight | 10g |
| Size | 22.3 x 11.8 x 26.3mm |
| Control System | (+)Pulse Width Control 1500 micro sec Neutral |
| Operating Voltage | 4.8 to 6.0Volts |
| Operating Temperature Range | -10 to 50 deg Celcius |
| Operating Speed (4.8V) | 0.12sec/60deg at no load |
| Operating Speed (6.0V) | 0.10sec/60deg at no load |
| Stall Torque (4.8V) | 1.2kg.cm |
| Stall Torque (6.0V) | 1.5kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 micro sec |
| Direction | Anticlockwise/Pulse Traveling 1000 to 2000 micro sec |
| Current Drain (4.8V) | 10mA/idle and 100mA no load operating |
| Current Drain (6.0V) | 10mA/idle and 120mA no load operating |
| Stall Current | 0.9A/1A |
| Dead Band Width | 4 micro sec |
| Motor Type | Iron core |
| Horn gear spline | 21T |
| Gear Type | Plastic |
| Connector Wire Length | 180mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal |
