Matek Micro BEC 6-30V
ArrayR 140,00
Description

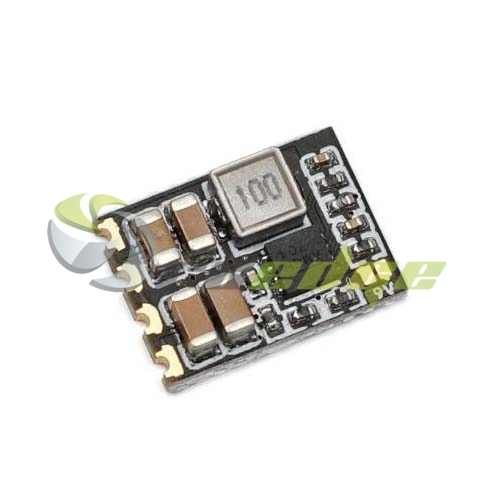

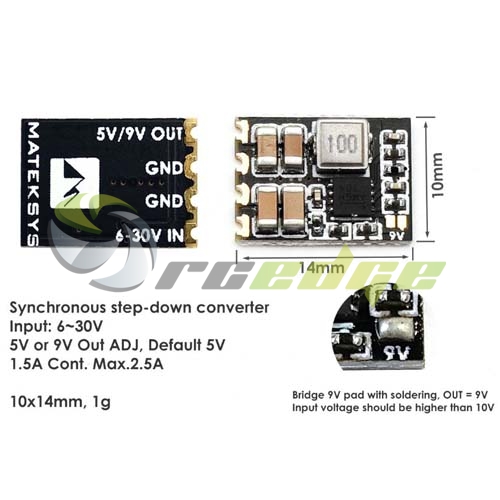

MICRO BEC 6-30V TO 5V/9V-ADJ
- High Efficiency Synchronous Step-down regulator
- Wide 6V to 30V Operating Input Range
- Continuous load current: 1.5 Amps (Max.2.5A 5s/minute)
- VOut 5V or 9V Adj. Default is 5V.
- VOut Load Regulation: 2%
- Standby current: <5mA
- Maximum Duty Cycle: 95%
- OCP Protection and Hiccup
- Thermal Shutdown
- Output Short-circuit tolerant (5 seconds/minute)
- Pins distance: 2.54mm

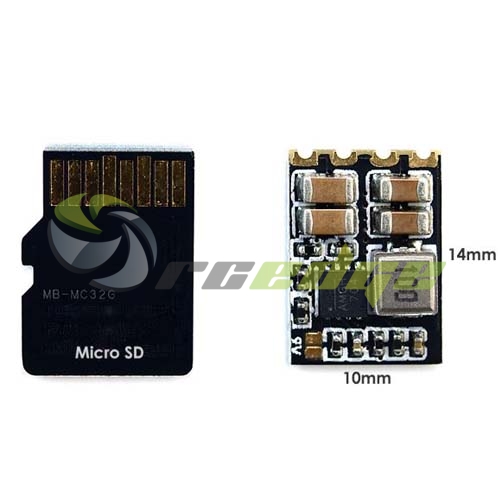

- Size & Weight: 10x14x3mm, 1g
- Packing: 3pcs/unit
