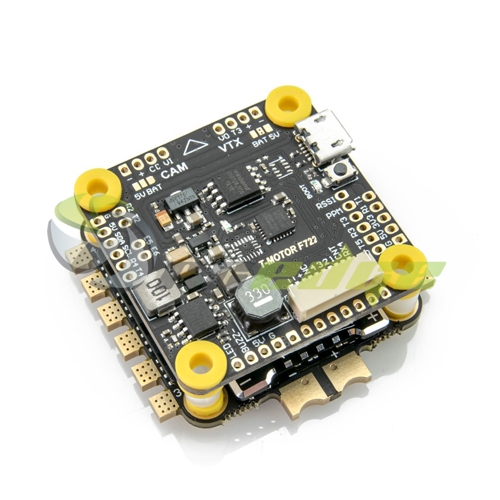

T-Motor F4+F45A V2 4 in 1 ESC Stack

Array
R 1998,00
Description

Upon receiving your FC,please connect to USB and calibrate before continuing to build and solder to it.

 F4 Flight Controller

The T-Motor F4 Flight Controller comes with an LC filter, which is great for eliminating interference to your VTX or other equipment. Equipped with a 5V/2A BEC allows hooking up of receivers, cameras, and other 5v compatible gear. The F4 is also loaded with 6 UARTs. Moreover, the user also has the choice of two gyros - the ICM20602 for high refresh rates or the MPU6000.

Specifications:

  • Input Voltage: 2-8S (8.4-33.6V)
  • MCU: STM32F405RGT6
  • IMU: ICM20602
  • OSD: Yes
  • Blackbox: 16MB Onboard Flash
  • UARTs: 6
  • ESC Connections: 6
  • Firmware: BetaFlight Target: T-MOTOR F4
  • BEC: 5V 2A
  • LC Filter: Yes
  • Current Sensor: Esc Telemetry / Current ADC
  • Buzzer: Pads
  • Barometer: No
  • Dimensions: 37x37x7mm
  • Mounting Pattern: 30.5x30.5mm
  • Weight: 7g



F45A V2 BLHeli_32 4-In-1 ESC

This ESC is T-Motor's 4-in-1 version of their popular F45A ESC. This 4-in-1 ESC packs 45A into an industrialized PCB layout made with premium features such as a 32bit main control chip, BLHeli_32 firmware, and 6s support.

The F45A 4-in-1 comes with a heatsink attached to keep heat away from sensitive electronics.

Another small bonus is the 4 x motor wire PCBs that come with this ESC. These go on your quad arms and help prevent damage to your motor wires from prop strikes or other damage. A neat little touch to include them.



Specifications:

  • Model No: F45A 6S 4IN1 32bit
  • Con. Current: 4*45A
  • Peak Current (10S): 4*53A
  • Lipo: 3-6S
  • Weight: 18g
  • Size: 49 x 40 x 6.9mm
