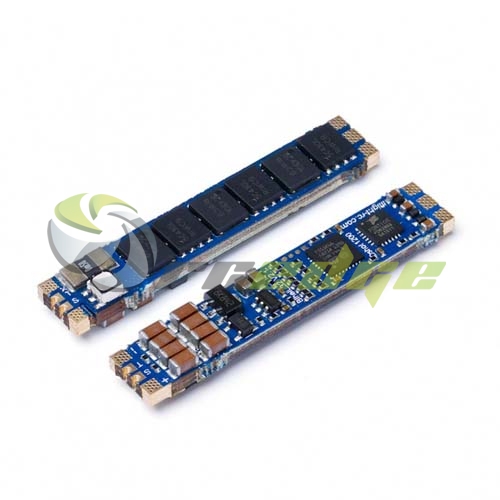

I-Flight SucceX 50A V2 Slick ESC (2 Piece)

iFlight SucceX 50A V2 Slick 2-6S ESC (2 Piece)

• The iFlight SucceX 50A Slick ESC is specially designed for FPV racing frames with slim arms like the Dove, Dove Lite, and Archer Frame.
• It comes with 48MHZ 32-bit STM32F051, to provide faster response speed and processing capacity. The STM32F051 is combined with the high-performance 3-in-1 driver, to lower the signal delay from throttle to the receiver, accelerate the motor responding speed and increase the control and precision.
• The Slick's ultra-narrow profile is unique and will fit on the narrowest of arms. But the size doesn't remove important features like RGB LED, 2-6S support (6S with cap) and Dshot1200.
• This package comes with 2 ESCs, not 4 like previously.
• V2 comes with an extra capacitor in a slightly different layout.

Features

• 48MHZ running speed integrated 3 in 1 STM32F051;
• Total 8-layer PCB board;
• High temperature and high current resistance;
• Support telemetry & current sensor ;
• RGB LED for power- on display;
• 45*8mm dimension, perfect for FPV racing frames w/ slim arms.
• countersinks and semicircle orifices enable each layer to be energized after power-on
• Support Dshot150/300/600/1200/Multishot/Oneshot;
• More aerodynamic, less prop thrust disturbance

Specifications

• Input Voltage: 2-6S
• Weight: 3.9g without cables
• Dimension: 45*8mm
• Current sensor: support
• Telemetry: support
• RGB led lights display status
• BEC: NO
• Support: Dshot150/300/600/1200, MultiShot, OneShot;
• Target:iFlight-BL32-PRO

RECOMMENDATION

• No additional capacitor needed up to 5S!
• But to encounter back EMF and ensure the longevity of your electronics, min. 220uF Cap 35V for 4-5S, 50V for 6S on your main lead!

Includes

2 x SucceX 50A V2 Slick ESC
2 x 35V 220uf capacitor
1 x Power cables & ESC signal wires set
