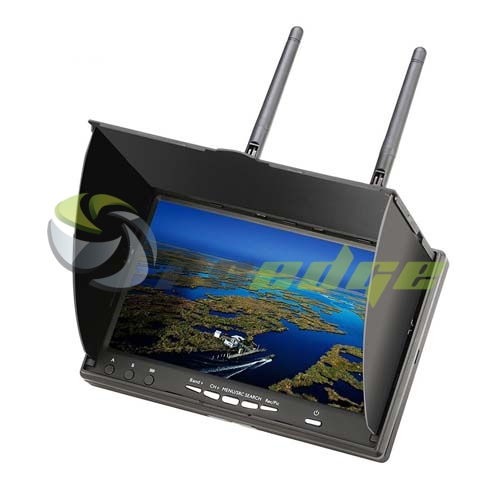

Eachine LCD5802 800x480 40CH LCD Screen

Eachine LCD5802D 5802 5.8G 40CH 7 Inch FPV Monitor with DVR Build-in Battery

Features:

• With DVR function
• Built-in Dual Receiver for best reception
• Dual buffered AV outputs
• Not affect by 2.4GHz R/C Radios
• AV Receiver with Diversity inputs
• Small, light weight, durable
• 5 Bands and total 40 Channels
• Built-in battery , easy to carry and outdoor use
• A key to automatic signal search,Simple operation
• Work status OSD display:Always be aware of the device working condition

Specifications:

• Item Name: LCD5802D Monitor
• Built-in 5.8Ghz Dual diversity receiver automatically for best reception
• Built-in 2CH 5.8Ghz AV output and 1CH AV input
• Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V
• Work status OSD display : RSSI indication ; Battery indicator;Channel indication
• A key to automatic signal search
• Support Chinese and English menu
• Format: JPEG, AVI
• Screen size: 7”
• Screen type: TFT LCD Screen/long life, LED backlight
• Resolution: 800x480
• Brightness: 600cd/m2
• View Angle: 140/120degree (Horizontal/Vertical)
• Size:180mm x 120mm x 50mm (Note:Sunshield height:28mm)
• Working Voltage: DC 7 to 16V
• Power Consumption: max: 650 mA @12V
• Battery charging current: 850mA @12V ( max )
• Working temperature: -10 to 65 deg Celcius
• Connectors: RP-SMA female(outer needle)
• Antennas Connectors: RP-SMA male (inner hole)
• Support up to 32G , C10 SD Card.
