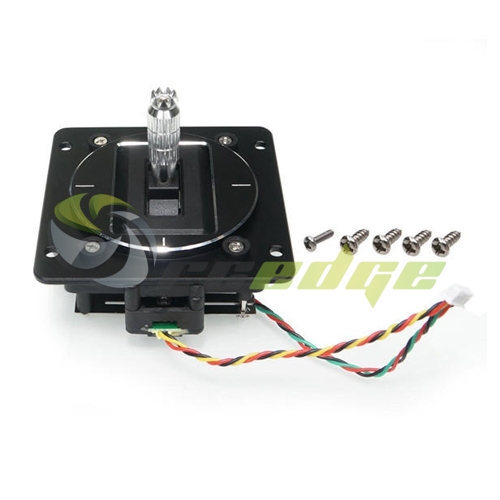

FrSky M7 Gimbal

Frsky Gimbal-M7 M7 High Sensitivity Hall Sensor Gimbal for Taranis Q X7 X7S

Features:

• Hall sensor
• 4 ball-bearings
• Adjustable tension
• Can be enable or disable self centering on both axis and ratcheting on the Y axis
• Special material quality that wears well

Specifications:

• Brand Name: Frsky
• Item Name: Gimbal-M7 M7 Hall Sensor Gimbal for Taranis Q X7
• Model: Gimbal-M7


• Supply Voltage (VCC):  DC 3.0 to plus/minus 0.5V

• Sensitivity:  2.50 mV/G

• Linear Output Voltage Range: 0.1 to (VCC +0.1) V

• Output Load Resistance (output to ground) >15KQ

• Quiescent Output (TA = 25 deg Celcius, B = 0 G): 0.5 × VCC

• Noise (no load): less than 40mVpp

• Quiescent Output Power Supply Rjection: -69dB
• Usage: for Frsky Taranis Q X7 / X7S Radio Transmitter





Mechanical Specifications:

• X-Axis Adjustable Angle Range: 60 deg plus/minus 5 deg
• Y-Axis Adjustable Angle Range: 60 deg plus/minus 5 deg
• Adjustable Height Range: 24.5mm to 30.5mm
• Installation Dimension: 42.9mm x 54mm

Package Includes:

1 x Frsky M7 Hall Sensor Gimbal
