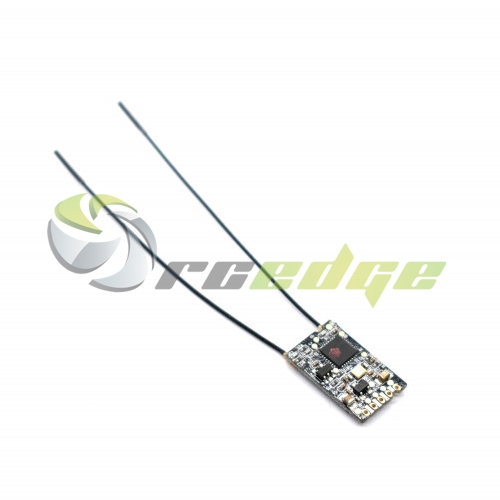

Fly Sky Receiver FTR16S
ArrayR 635,00
Description
FlySky FTr16S 2.4G 16CH AFHDS 3 RC Receiver Support i-BUS/S-BUS/PPM Output Compatible PL18 for RC Drone
The FTr16s is a double antenna bidirectional receiver using the AFHDS 3 protocol It's compact, easy to install and can output using a standard PPM or i-BUS signal.
Specifications:
- Brand Name: FlySky
- Item Name: FTr16S Receiver
- Channels: 16CH
- Size: 20 x 12 x 3.1mm
- Weight: 2g
- Wireless frequency: 2.4G
- Wireless Protocol: AFHDS 3
- Remote control distance: 3500m (air)
-
Range without interference 1m from the ground more than 1000m
-
Channel Data: 1500us; Range: 900-2100us
- PWM channel: NO
- Antenna type : Dual antenna (92.5mm x 2)
- Power: 3.5-8.4V
- Display: LED Indicator
- RSSI: Support
- Data interface: i.bus/s.bus/PPM
- Temperature range: -10 ° C - + 60 ° C
- Humidity range: 20%-95%
- Online update: support
Attention:
- Make sure the product is installed and calibrated correctly, failure to do so may result in serious injury.
- Make sure the receiver's battery is disconnected before turning off the transmitter, failure to do so may lead to unintended operation or loss of control
- Make sure the receiver is mounted away from motors, electronic speed controllers or any device that emits excessive electrical noise
- Keep the receiver's antenna at least 1 cm away from conductive materials such as carbon or metal
- Do not power on the receiver during the setup process to prevent loss of control
- The receiver can receive at distances further than it can transmitter from When the receiver goes out of its transmission range, some transmitter's will sound the lost signal alarm. This is normal, the lost signal alarm can be turned off in the settings for transmitters such as the paladin (Pl18).
Binding:
- First put the transmitter into bind mode(see the transmitter's user manual for instructions on how to activate bind mode
- Press receiver's bind key and connect the receiver to power at the same time the receiver 's green led will start to flash quickly indicating that it has entered bind mode
- When the receiver's green LED stops flashing the transmitter and receiver have successfully bound
- When the receiver's red LED flash slowly indicating losing signal
