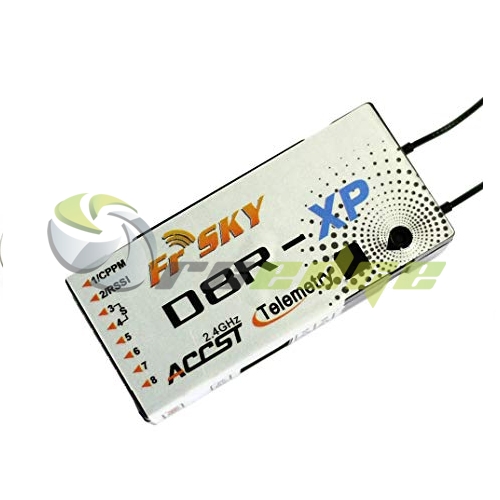

FrSky Receiver D8R-XP

FrSky 2.4G 8CH D8R-XP D8RXP Telemetry Receiver

Features:

• Two external analog telemetry ports (A1&A2) and one digital data-stream port (Rx);
• RSSI (PWM) and CPPM output - If CH3 and CH4 are connected by a jumper, CH1 will output CPPM for CH1 to CH8,and CH2 will output RSSI (PWM);
• When side port pins of A1 and X are connected by the jumper, A1 will change from external analog telemetry port to internal built-in battery voltage sensor;
• Firmware upgradeable;
• Two switchable PPM modes - FS mode and HS mode;
• Alarm warning on low voltage, poor reception, etc.

Specifications:

• Brand Name: Frsky
• Item Name: D8R-XP
• Dimension: 55 x 25 x 14mm
• Weight: 12.4g
• Operating Voltage Range: 3.5V to 10.0V
• Operating Current: 100mA
• Operating Range: Full range (>1.5km)
• Resolution: 3072 (>11bit)
• Servo Frame Rate: 18ms (FS – Normal Speed Mode) ; 9ms (HS – High Speed Mode)
• Compatible with FrSky two way telemetry modules: DFT, DJT, DHT, DHT-U
