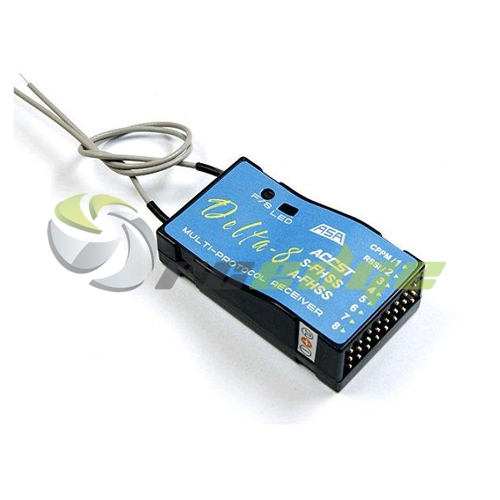

FrSky Receiver Delta 8

FrSky Delta 8 2.4Ghz 8CH Multi-Brand Receiver D8/V8 Futaba S-FHSS/FHSS Hitec AFHSS Compatible

Delta-8 Not only is it the first Futaba FHSS compatible, but it is also the first time anyone has a single receiver that supports 3 different protocols! Binding is simple, and the receiver automatically locks into the correct protocol. As an option, you can use jumpers to lock it into your protocol. If that was not enough, this receiver also features CPPM and RSSI output options. CPPM allows you to feed all 8 channels through a single servo connector and is great for Flybarless helicopters and other flight controllers (such as Quads).RSSI output is great for sending your signal strength indicator to an onboard video system.These are advanced features you typically have to pay a premium for elsewhere.

This unit works with the following systems:

• FrSky D8
• FrSky V8
• Futaba S-FHSS
• Futaba FHSS
• Hitec 2.4GHz A-FHSS

Features:

• You can put the receiver into PPM and RSSI output mode for flybarless helicopters, multi-copter and FPV users.
• When binding, the Delta 8 will search and find which system is active and then bind to that transmitter - all automatically. Alternatively you can use a set of jumpers to force the receiver to only look for a particular brand.

Specifications:

• Operating Voltage Range: 3.0V to 16V (HV Version)
• Operating Current: 30mA
• Specified Range: 1.5km to 2.5km
• Resolution: 3072
• Latency: 22ms
• Number of Channels: 8CH
• Dimensions: 49mm × 24.5mm × 15mm
• Weight: 9.3g
