Spektrum Receiver DSMX Quad Race Telemetry

Spektrum Receiver DSMX Quad Race Telemetry

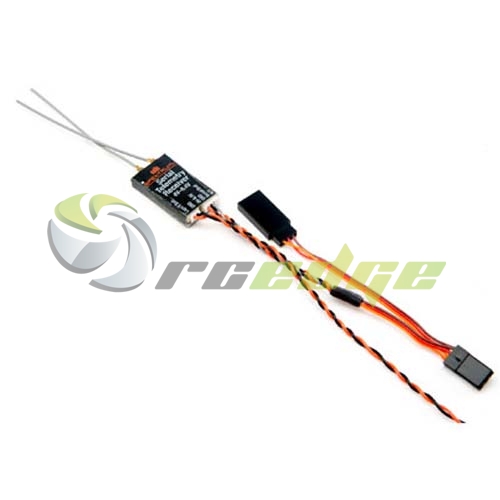

The SPM4649T quad racing serial receiver offers full-range performance with integrated telemetry providing FPV racing enthusiasts with a serial receiver that can transmit vital telemetry data. Like SPM4648, the 4649T offers a 1-wire serial connection that is compatible with most flight controllers and an input for telemetry data such RPM, battery voltage and a whole lot more. Spektrum enthusiasts with telemetry capable transmitters such as the DX6, DX8, DX9 or DX18 can now receive on-demand telemetry data, and by using the voice functionality of compatible G2 transmitters, can have specific telemetry data outputted via the on-board audio system.

Features:

• Small size and lightweight design
• Works with most popular flight controllers
• Single line connection provides output to FC while receiving telemetry input from FC or battery
• Dual antennas for optimal range and RF performance

Specifications:

• Length:1.2 inch (30mm)
• Width:0.6 inch (16mm)
• Height:0.2 inch (6mm)
• Weight:0.1 ounce (3 grams)
• Voltage Range:Receiver: 4.0v-7.5v / Vbatt Port: 6.0v-25.2v

Telemetry Options Include:

• Provided directly from receiver
• Flight log data
• Battery voltage
• RPM
• Lap Timer
• Provided by external device e.g.: Flight Controller
• Flight log if using more than 1 receiver
• Battery voltage
• RPM
• Lap Timer
• Current draw and total mAh consumption
• Temperature
• All other data the FC can send that we support such as GPS, accelerometer date, ESC data, etc...
