TBS Crossfire TX Long Range
ArrayTBS CROSSFIRE TX - LONG RANGE R/C TRANSMITTER
The TBS CROSSFIRE is a long range R/C link based on the newest RF technology, capable of self-healing two-way communications, ultra-low latency and range beyond comprehension.
A NEW ERA OF CONNECTIVITY
Remote control links, however, are tasked with much more than range. Latency, telemetry, robustness against interference, connectivity with smart devices, ease of use and the overall finish are too often sacrificed for that last bit of range. The Crossfire comes with plenty of range, and uses that margin for additional functionality and reliability. A bright future for FPV lies ahead :)
DEVELOPED BY EXPERTS
Through the OLED Display on the transmitter, you can monitor the real-time location of your drone (TBS GPS or BlackBox with DJI Naza or APM-based GPS required). The up- and downlink status provide a feeling of safety, the configuration options through the OLED display do away with any PC-based configuration tools. The pulsing LED relays your link budget and link health in colorized form (green = keep going, orange = turn around). In case of a crash, the location of the drone is visible on the OLED as well. The built in battery on the receiver turns it into a beacon automatically - and it will continue to transmit its last known location until the battery runs out.
IT JUST WORKS
TELEMETRY / CRSF
DOWNLOADS
- TBS Crossfire Manual
- TBS Crossfire Manual (German)
- TBS Agent X (for software updates)
- Latest OpenTX LUA Scripts for Crossfire
- TBS Cloud - Wifi Firmware
- TBS Cloud - Crossfire & Mavlink Over Wifi
- OpenTX Nightly Firmware (Updated - Jan.11. 2021)
FEATURES:
- Long range, adaptive and robust remote control system for your aircraft
- Immune to on-board noise
- Two-way communication link with real-time link vitals and telemetry
- Self-healing & frequency hopping (DSSS, FHSS)
- Adaptive bandwidth control and range optimization
- Serial Modem capable of transmitting MAVLink or other serial protocols (up & downlink)
- RX beacon mode to recover your downed aircraft
- Super easy binding and configuration via built-in display
- Low latency, 150Hz update rate (3x faster than typical RC links) control for perfect immersive feeling
- Two receiver models: 8ch Diversity Rx, 4ch PPM/SBUS Mini-receiver (4g weight!)
- 8 or 12ch output via PPM/SBUS/CRSF on both receivers
- Ability to fly with multiple friends at the same time (10 or more)
- Selectable RF power from 10mW to 2W (local restrictions apply)
- Dedicated head-tracking input option for full FPV immersion
- Transmitter LED shows link health, OLED display for built in configuration
- Short-Range mobile connectivity telemetry output for smartphone apps
- Fully configurable by OpenTX and TBS TANGO remote using CRSF protocol
- CRSF protocol interface to Betaflight, Kiss and Raceflight FCs ( lower latency, higher update rate, telemetry support )
- Expansion port for future feature support
- Micro-receiver for smaller drones. Smaller than you think!
- Software updates via RF Link
-
TECHNICAL SPECIFICATIONS:
- Frequency Bands: 868MHz (EU, Russia) / 915MHz (USA, Asia, Australia)
- Input Voltage: 3.5 - 13V
- Power consumption: 1.1W (@10mW) - 3.2W (@2000mW)
- Dimensions: 55 x 89 x 15 mm
- Weight: 76g
PACKAGE INCLUDES

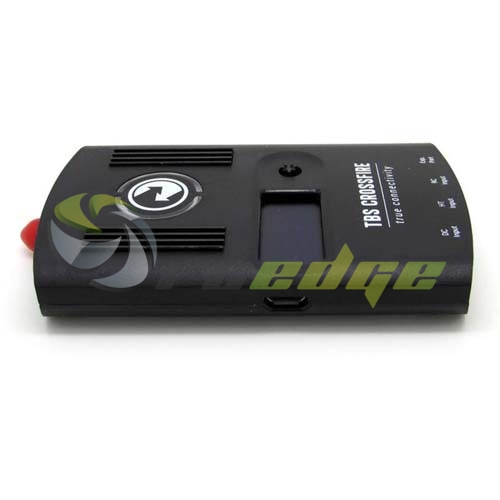

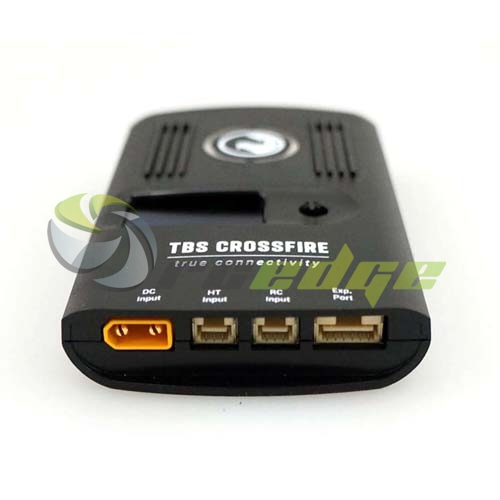

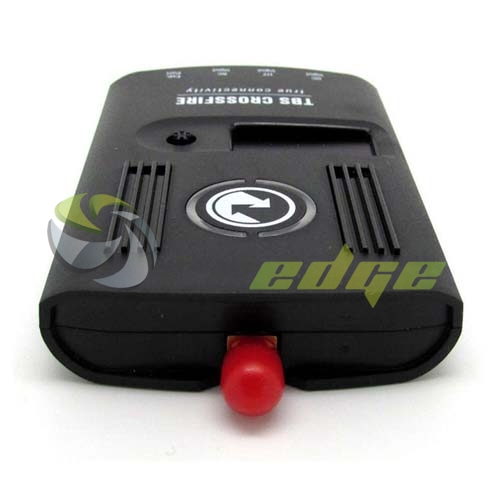

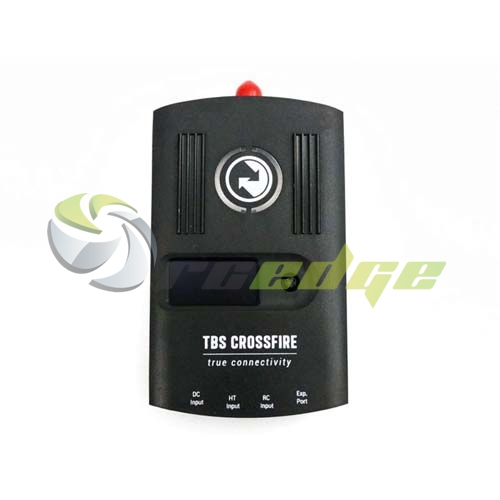

- TBS Crossfire Transmitter

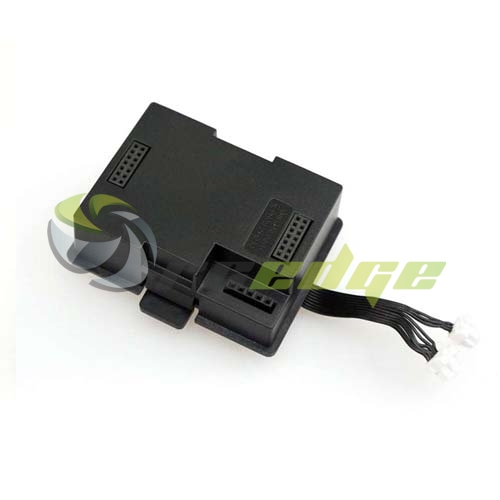

- TBS Crossfire JR Adapter

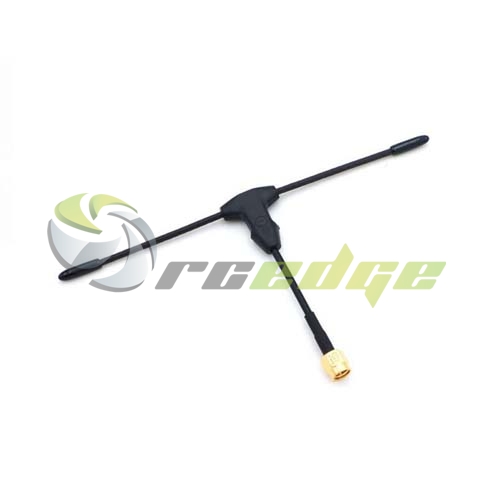

- TBS Crossfire Stock Tx Antenna V2

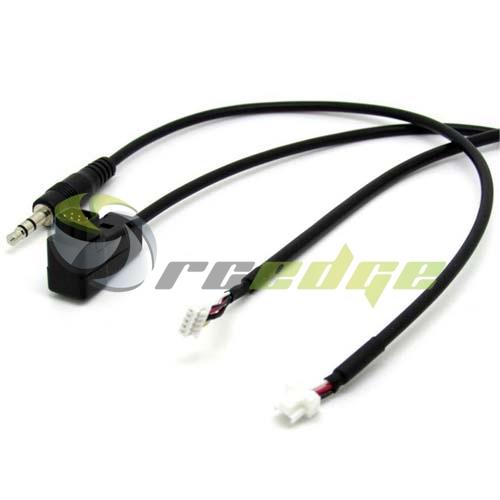

- Crossfire Futaba cable
- Crossfire Graupner / Spektrum cable
- Crossfire PWM Pigtail

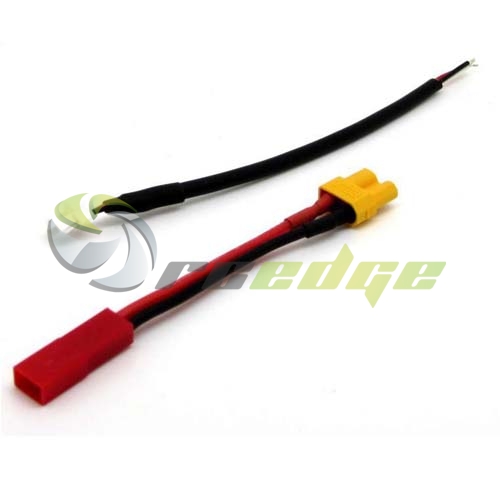

- Crossfire JST to XT30 cable
