Hobbywing UBEC 8A 5S

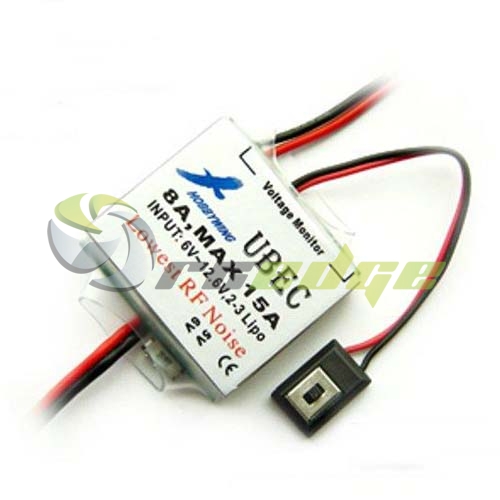

Hobbywing UBEC 8A 2-3S Lipo

The 8A-UBEC is a switch-mode DC-DC regulator supplied with a 2-3 cells lithium battery pack and it outputs a consistent safe voltage for your receiver, gyro and servos. It is very suitable for RC helicopter (above 30 class) and big fixed-wing aircraft. Compared with the linear mode UBEC, the overall efficiency of the switch-mode BEC is much higher, so it can extend the working time of the receiver battery pack, and because a switch mode UBEC can significantly reduce the heat emission, it can avoid the loss of control caused by the over-heat problem which is frequently happened with the linear mode UBEC.

Specifications:

• Output Voltage: 5V or 6V (Changeable with an output-voltage select switch )
• Continuous output current: 8 Amps
• Burst output current: 15 Amps
• Input: 6V-12.6V (2)
• Quiescent current: 60mA
• Size: 42mm*39mm*9mm (length*width*height)
• Weight: 34g
