I-Flight M8Q-5883-GPS & Compass V2.0

iFlight M8Q-5883-GPS Module V2.0

Features：

• 10 Hz Refresh rate
• Additional front-end LNA (Low Noise Amplifier)
• High sensitivity 15x15mm GPS patch antenna
• Built-in TCXO crystal and farad capacitor for faster hot start
• Compass module QMC5883L integrated

Specifications:

• GPS module: GPSSAM-M8Q
• Frequencies： 72 channel
• Compass module: QMC5883L
• Baud Rate：4800bps-115200bps (Default - 9600bps)
• Sensitivity: Tracking: -162dBm， Capture: -160dBm，Cold Start：-148dBm
• Cold start：<29s
• Hot start： <2s
• Accuracy: Horizontal
• Maximum height: 50.000m
• Maximum speed: 500 m/s
• Speed accuracy: 0.05 m/s
• Maximum acceleration: ≦ 4G
• Refresh Rate: 10 Hz
• GPS patch antenna size: 15 x 15 mm
• Total dimensions：20 x 20 x 10.5 mm
• Weight: 8g
• Input Voltage： 3.3V-5V，current 25mA
• GPS pin definition: RX/TX UART
• Compass pin definition: SDA/SLA

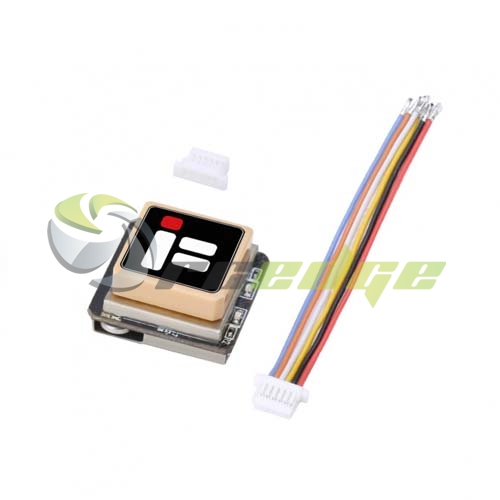

Package included:

1 x iFlight M8Q-5883 GPS
1 x SH-1.0-4Pin silicon wire
