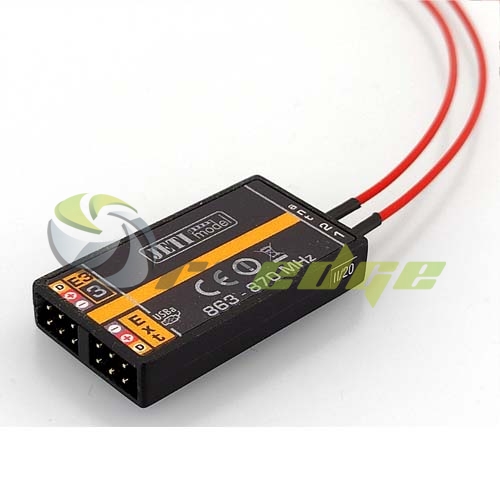

Jeti Duplex Rsat 900 Mhx NG

The Duplex RSAT 900 NG (Next Generation) series receivers are designed for operation with JETI DC/DS transmitters fitted with a 900MHz NG module.

These 900MHz NG receivers have a better signal range and are less affected by interference. Duplex RSAT 900MHz NG receivers use the latest LoRa module technology. The 900MHz NG receivers are intended as a backup system if the 2.4GHz main system fails due to external interference. This significantly increases the safety of your RC model. Receivers RSAT 900 and RSAT 900 NG are not compatible!

Parameters:

• Telemetry Yes
• Operational temperature [°C] -10 to 85
• Compatible protocols DUPLEX 900 MHz EX, EX Bus
• Supply Voltage [V] 3.5 - 8.4
• Average Current [mA] 75
• Satellite receiver support Yes
• Output Power [dBm] 15
• Receiver Sensitivity [dBm] -106
• Assist stabilization No
• Frequency EU: 863 - 870MHz
• US: 902 - 928 MHz
• AU: 918 - 926 MHz
• Weight [g] 11
• Dimensions [mm] 40 x 22 x 7
• Number of channels -
• Antenna Length [mm] 2x 260
