Sequre Electric Soldering Iron

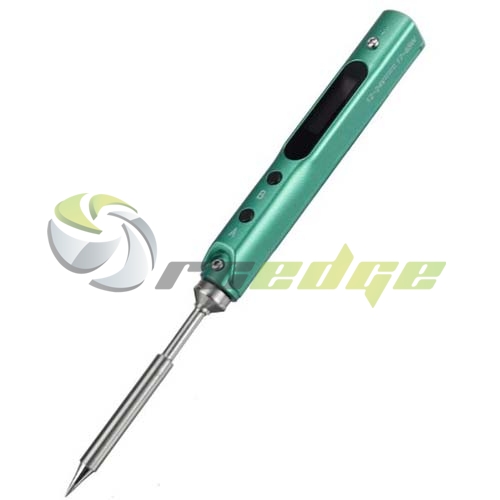

SEQURE SQ-001 65W Digital OLED Programmable Portable Mini Soldering Iron RC Car Parts - 01

Mini Soldering Iron Controller:

• SQ-001 is based on 304 stainless steel nested ABS + PC shell, Integrated special power interface, Safety circuit design, Antistatic structure.
• The perfect combination of embedded processor, dual temperature sensor and acceleration transmitter.
• Make SQ-001 realize intelligent temperature control between 100-400 degrees, more stable temperature, instantaneous temperature rise, automatic sleep, over temperature alarm and other functions.

Mini Soldering Iron Heating end:

• The heating end adopts internal heating core
• Factory preset temperature: 300 ℃
• Temperature stability range: ± 2%

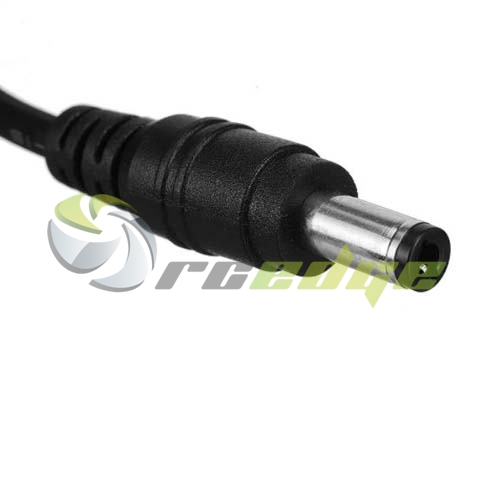

• External independent power supply: DC 5525 power interface, suitable for DC 12-24v notebook power supply, vehicle power supply and mobile power supply.
• Micro USB interface: set temperature rise curve, user defined function key and firmware upgrade function through parameter file.
• Additional functions: application layer open source design. You can change the internal parameter settings according to your own needs to meet more and more performance needs of different customers.

Safety Instructions

• Please use ground clamp, proper power supply and other accessories to ensure safe use. 2. When SQ-001 is used for the first time, it may slightly smoke due to heating of electric heating element, which is normal Phenomenon.
• If SQ-001 is used continuously for more than 350 ° C for 40 minutes, the handle temperature of soldering iron will reach 50°C~60°C.
• When SQ-001 temperature rises, do not contact the iron head to avoid scalding.
• When SQ-001 is powered on, the iron head cannot be replaced.

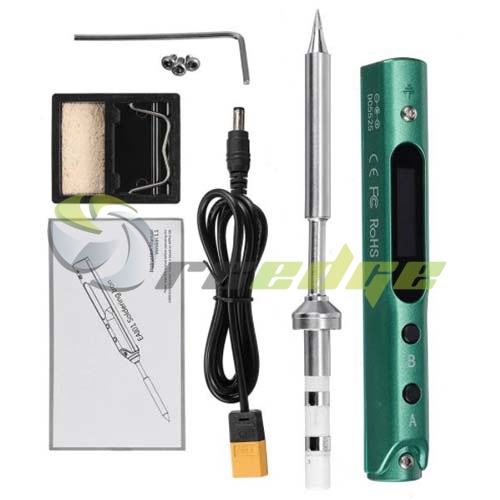

Package included:

1 x SQ-001 Controller

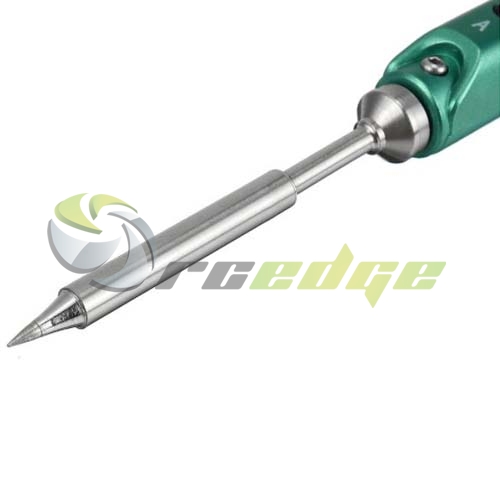

1 x Solder Tip
1 x Safety Instructions
1 x Hex Key
1 x User Manual

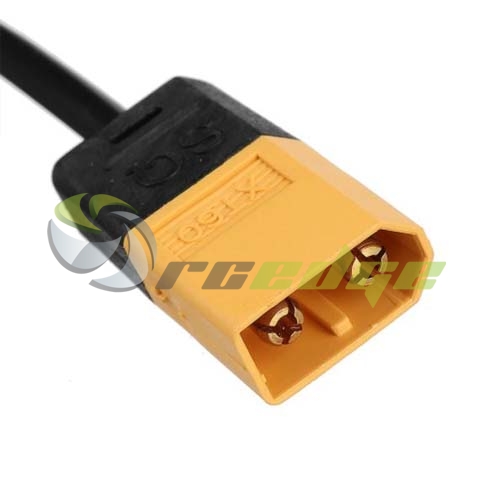

1 x DC5525 XT60 Power Cable
1 x Mini-bakelite Stand Holder
