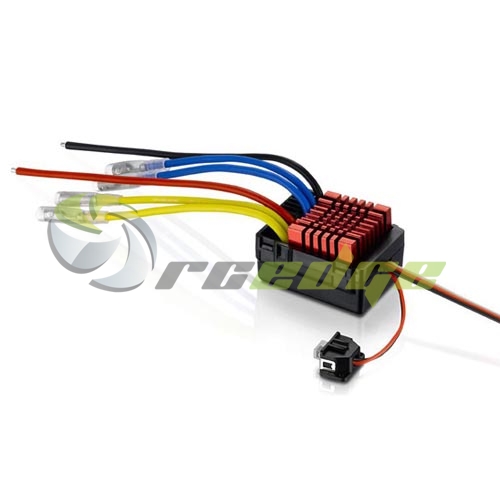

Hobbywing ESC Quicrun 880 Dual Brushed

Hobbywing Quicrun 0880 Dual Motor Brushed ESC (80A) Waterproof

Specifications

• Cont./Peak Current: 80A/400A
• Input Voltage: 2-4S LiPo/5-12 Cell NiMH
• BEC: Output 6V@4A (Switch-mode)

Wires & Connectors

• Input Wires: Red-16AWG-150mmx1 / Black-16AWG-150mmx1
• Output Wires: Blue-16AWG-100mmx2 / Yellow-16AWG-100mmx2
• Input Connectors: Not supplied
• Output Connectors: 4.0 Bullet Connectors (Female)
• Separate Programming/Fan Port
• (Note: All the wire length above is the original length not the length you see from the outside.)
• ESC Programing via LED Program Box only

Size & Weight

• Size: 45.9X34.7X26.5mm
• Weight: 75g

Applications

• Motors: Brushed Motor(540/550/775 size motors)
• Vehicles: Various 1/10th & 1/8th Vehicles

KV Rating/T Count

• Brushed Motor Limit with 2S LiPo/6S NiMH: =12T or RPM<This email address is being protected from spambots. You need JavaScript enabled to view it. (540/550 size motors)
• Brushed Motor Limit with 3S LiPo/9S NiMH: =18T or RPM<This email address is being protected from spambots. You need JavaScript enabled to view it. (540/550 size motors)
• Brushed Motor Limit with 4S LiPo/12S NiMH: =24T or RPM<This email address is being protected from spambots. You need JavaScript enabled to view it. (540/550 size motors)
