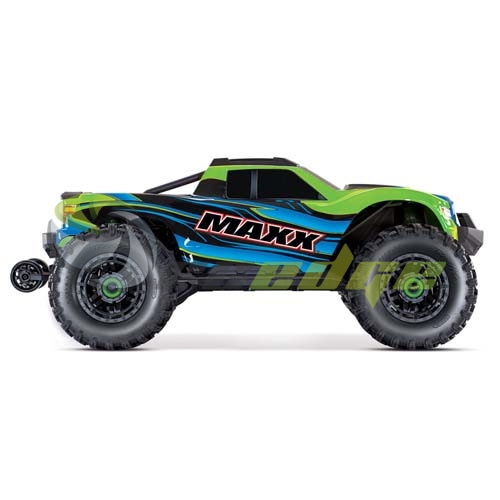

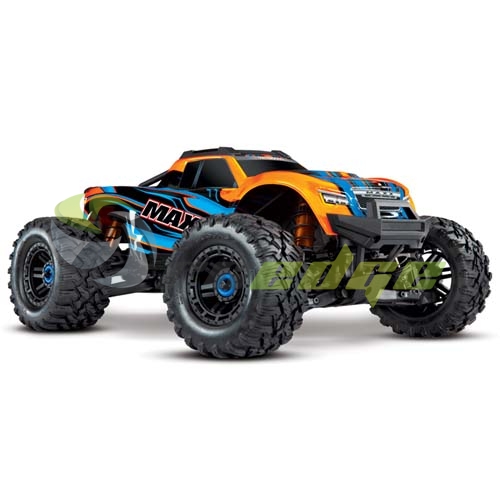

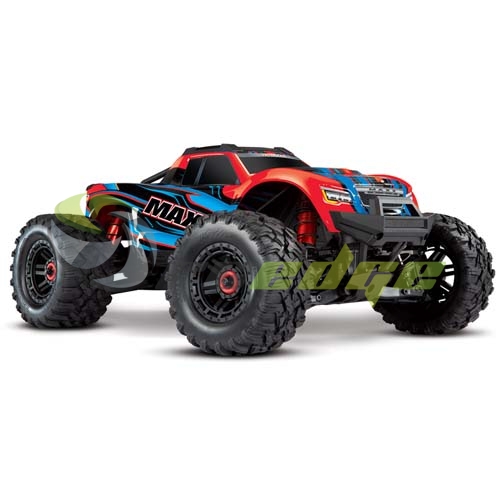

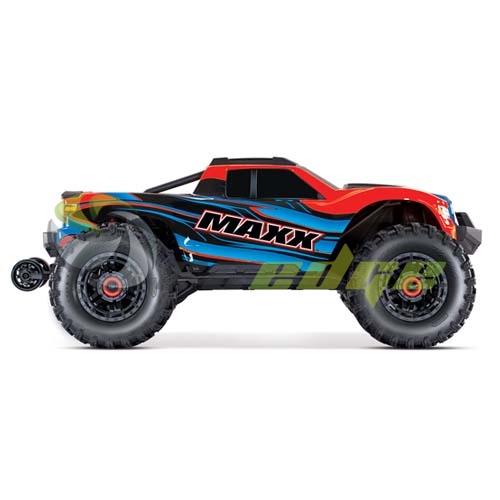

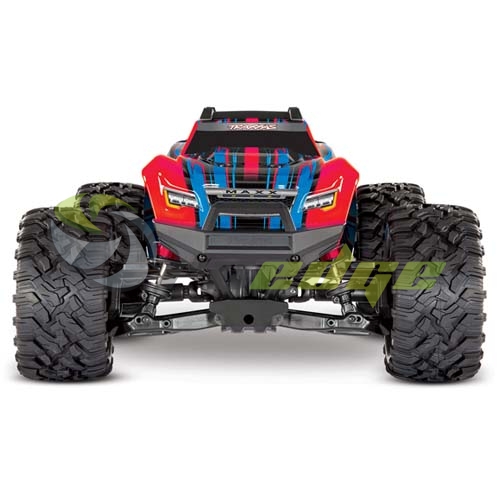

Traxxas Maxx 4x4 Brushless
ArrayR 13750,00
Description
MEET THE NEW MAXX®
The Traxxas X-Maxx forever changed the face of RC monster trucks. Its radical new design, massive size, brutal strength, and unmatched power transformed X-Maxx into the stuff of legends. There is really nothing else like it… until now. Meet the all-new 1/10 Traxxas Maxx. Maxx expertly packages X-Maxx’s innovative design elements into a lighter, more compact, more ferocious beast that is ready to take speed and strength to new levels of extreme intensity. Let the fun begin!
Details:
Look anywhere on the Maxx® truck and it becomes clear that no detail was overlooked to provide the best possible performance.
Truck Specifications:
| Length: | 21.60 inches (549mm) |
|---|---|
| Front Track: | 14.50 inches (368mm) |
| Rear Track: | 14.50 inches (368mm) |
| Ground Clearance: | 1.92 inches (49mm) |
| Weight: | 9.7 lbs (4.4kg) |
| Height (ride): | 9.12 inches (232mm) |
| Wheelbase: | 12.96 inches (329mm) |
| Shock Length: | 4.89 inches (129.2mm) |
| Tire Diameter: | 5.51 inches (140mm) |
| Wheels Diameter: | 2.8 / 3.6 inches (71 / 91mm) |
| Speed Control: | Velineon VXL-4s |
| Motor (electric): | 540XL (2400 kV) |
| Transmission: | Single-Speed |
| Overall Drive Ratio: | 11.86 (24 / 50) |
| Differential Type: | Sealed, hardened steel bevel, limited slip |
|---|---|
| Gear Pitch: | Module 1.0 |
| Chassis Structure/Material: | Composite Modular Tub |
| Brake Type: | Electronic |
| Drive System: | Shaft-driven 4WD |
| Steering: | Double-shear bellcrank |
| Radio System: | TQi™ 2.4GHz Transmitter with TSM® receiver™ |
| Servo: | Torque: 285oz-in. |
| Top Speed: | 60+ MPH with 4S LiPo battery and optional gearing (sold separately) |
| Skill Level: | 4 |
| Battery Tray: | 162mm L x 45mm W x 43mm H |
| Required Batteries: | 4 “AA” (transmitter) |
Motor Specifications:
| Type: | 2400 kv sensorless brushless |
|---|---|
| Weight: | 317g (11.18oz) |
| Length: | 3.58 inches (91mm) |
| Diameter: | 1.41 inches (36mm) |
| Connector Type: | Traxxas 6.5mm bullet connectors |
ESC Specifications:
| Input Voltage: | 3S–4S LiPo (11.1V – 16.8V) |
|---|---|
| Case Size: | 2.83 inches (72mm) x 2.32 inches (59mm) x 1.93 inches (49mm) |
| Weight: | 201g (7.09oz) |
| BEC Voltage: | 6.0 V |
| BEC Current Continuous: | 10 A |
| BEC Current Peak: | 20 A |
| Motor Connectors: | Traxxas 6.5mm bullet connectors |
| Battery Connectors: | Traxxas High-Current Connectors |
| Power Wire: | 10-gauge Maxx Cable |
| Ports: | RX input, auxiliary fan, Traxxas accessory port |
Featured List:
- VXL-4s™ Waterproof Electronic Speed Control
- 3S–4S LiPo compatible
- Built-in cooling fan
- Real-time telemetry via Traxxas Link™
- Machined heat sinks
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
- Waterproof
- Velineon® 540XL Brushless Motor
- Long format brushless motor
- 4-pole 2400 kV
- 5mm output shaft
- Aluminum heat sink
- Cooling fan
- 55+ MPH out of the box using single 4S LiPo battery (sold separately)
- 60+ MPH with optional gearing and single 4S LiPo battery (sold separately)
- Traxxas Stability Management™
- Helps prevents spinouts and loss of control
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4GHz High Output Radio System
- TQi™ 2.4GHz transmitter
- Traxxas Link™ enabled
- TQi 2.4GHz 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
- Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- High 13ms frame rate and near-zero latency for responsive control
- Telemetry-ready 5-channel micro receiver
- Clipless Body Mount System
- Quick one-hand installation and removal
- Uses pivoting rear latch mechanism
- Eliminates body posts and clips
- Reinforced for extra protection against tearing
- Drivetrain
- Full-time shaft-driven 4-wheel drive
- Torque-Biasing Center Drive™ absorbs shocks and distributes power
- 17mm keyed wheel hex with 5mm nut

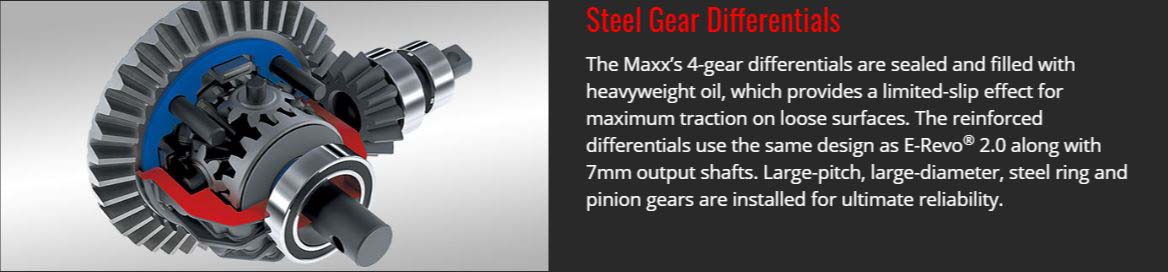

- Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Heavy-duty Cush Drive™

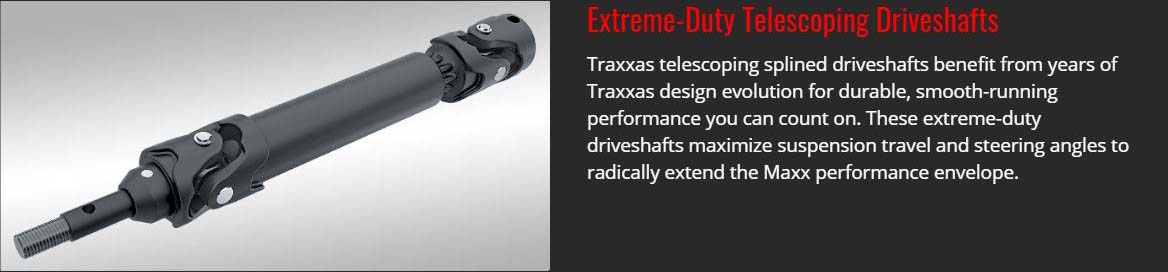

- Extreme-duty telescoping driveshafts

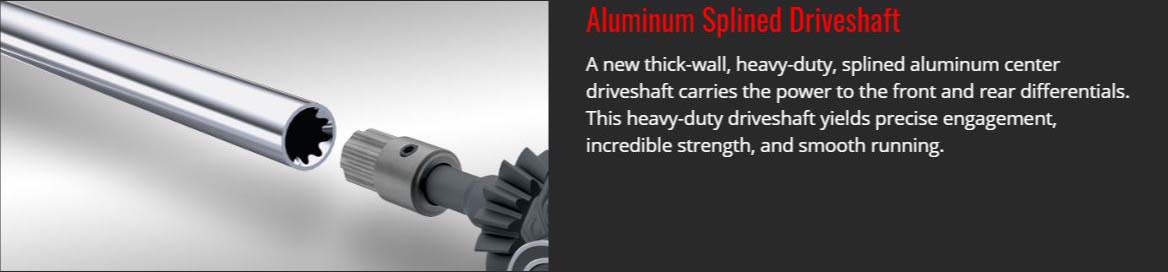

- Splined aluminum center driveshaft
- Secure Motor Mounting System
- Precise, fixed gear mesh adjustments
- Motor retention separate from gear mesh

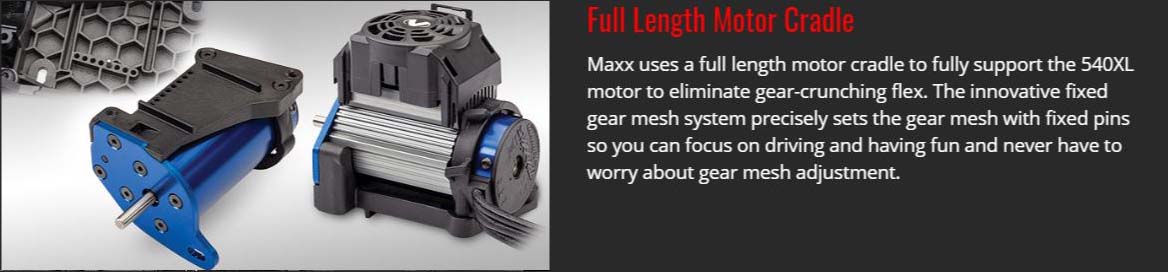

- Full-length motor cradle
- New Modular Composite Chassis
- Modular chassis design interlocks with front and rear bulkheads
- Absorbs and distributes impact energy
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt and grit
- Easy Battery Access
- Battery is protected deep in the chassis
- Battery hold-downs pivot for easy access
- More secure than conventional retention systems
- Heavy-Duty Steering Bellcranks and Servo
- Large-scale high-output steering servo
- 285oz-in of torque
- 0.18 sec transit speed
- New mounting system to fully support case
- Heavy-duty double-shear bellcranks
- Large-scale high-output steering servo
- Suspension
- Engineered to optimize suspension travel and steering angles
- All critical suspension points have double shear strength
- Steel pivot balls
- C-hub and steering block geometry maximizes steering angle
- Fixed, high-strength camber and toe links
- Steel upper and lower tie bars
- Full contact sealed bearings used throughout driveline

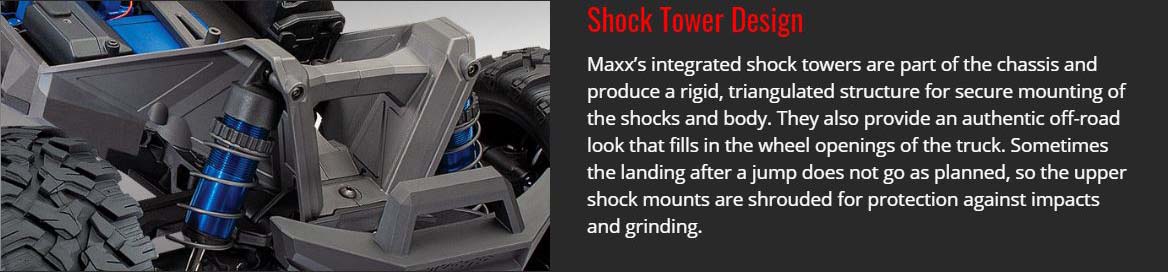

- New GT-Maxx® Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- Large-diameter damper shaft
- Lower seal cartridge with dual X-rings
- Adjustable upper spring retainer
- Plastic shock caps with pivot balls
- Lower spring perches bolted on
- Bumpers
- Tough energy absorbing front and rear bumpers
- Lower front and rear skids for impact and abrasion resistance
- Integrated nerf bars for side impact resistance
- Wheelie bar with integrated carry handle

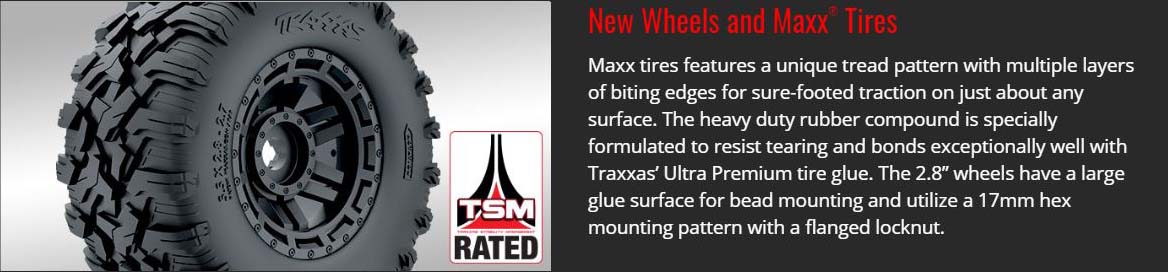

- Wheels/Tires
- Tough 2.8” wheels with keyed 17mm hex receptor
- Large 5.5” all-terrain dual-diameter tires
- 1-piece foam inserts
- Pre-glued and ready for action
- TSM™ rated
Whats in the box:
- Maxx, Ready-To-Race® model with Traxxas 540XL brushless motor
- VXL-4s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi™ 2.4GHz radio system
- High quality maintenance tools
What you'll need:
- LiPo Battery
Traxxas recommends a 4-cell 14.8V Power Cell LiPo battery for maximum performance. A 3-cell 11.1V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
- LiPo Balance Charger with iD™
Traxxas EZ-Peak Live 4s-capable charger is recommended for easy and fast charging performance
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
