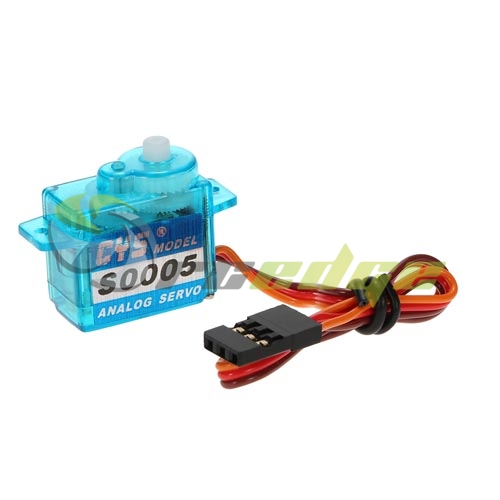

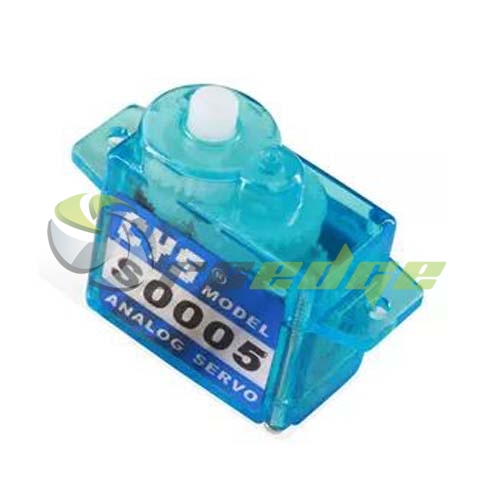

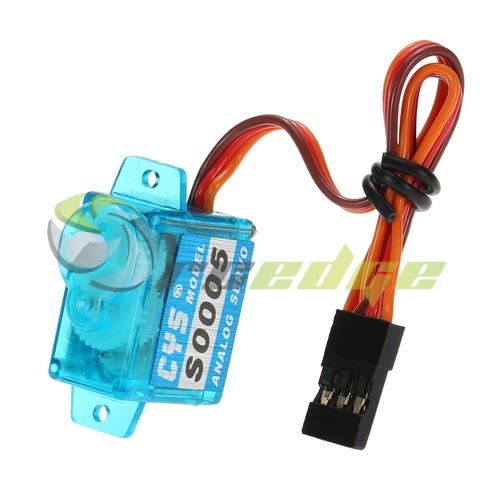

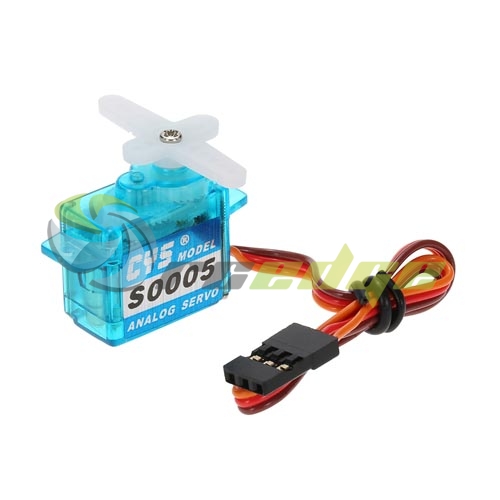

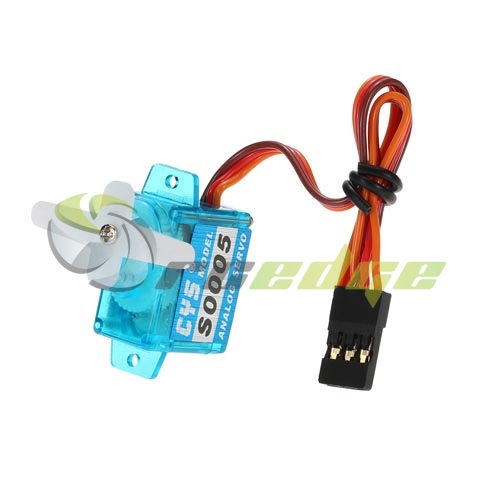

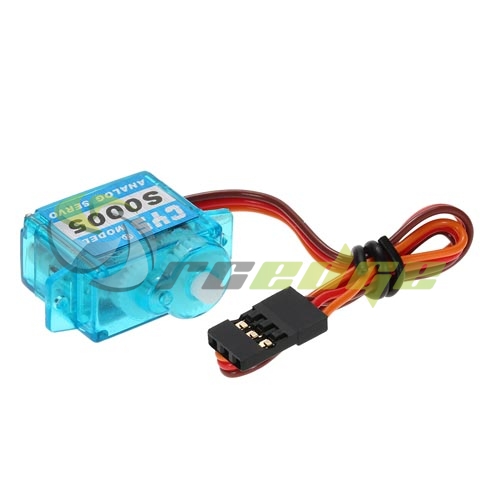

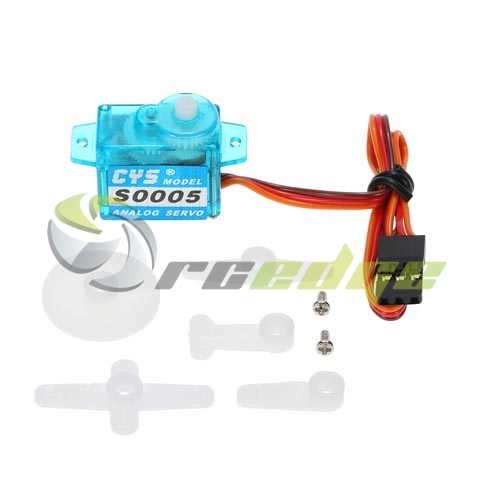

CYS S0005 Analog 6.0V Speed: 0.12 Torque: 1.0kg
ArrayR 95,00
Description
- Item NO.: CYS-S0005 5g analog servo
- Description : 5g mini servo for rc plane
- Size : 21.5 x 11.8 x 20.9mm
- Torque : 0.8Kg.cm to 1.0Kg.cm
- Speed : 0.13sec to 0.11sec/60 deg
- Voltage : 4.8Volts to 6.0Volts
- Weight : 5g
Specifications:
| Type | Analog |
|---|---|
| Weight | 5g |
| Size | 21.5 x 11.8 x 20.9mm |
| Control System | (+)Pulse Width Control 1500 micro sec Neutral |
| Operating Voltage | 4.8 to 6.0Volts |
| Operating Temperature Range | -10 to 50 deg Celcius |
| Operating Speed (4.8V) | 0.14sec/60deg at no load |
| Operating Speed (6.0V) | 0.12sec/60deg at no load |
| Stall Torque (4.8V) | 0.8kg.cm |
| Stall Torque (6.0V) | 1.0kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 micro sec |
| Direction | Anticlockwise/Pulse Traveling 1000 to 2000 micro sec |
| Current Drain (4.8V) | 10mA/idle and 120mA no load operating |
| Current Drain (6.0V) | 10mA/idle and 140mA no load operating |
| Stall Current | 0.39A/0.46A |
| Dead Band Width | 5 micro sec |
| Motor Type | Coreless motor |
| Horn gear spline | 24T |
| Gear Type | Plastic |
| Connector Wire Length | 180mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal |
