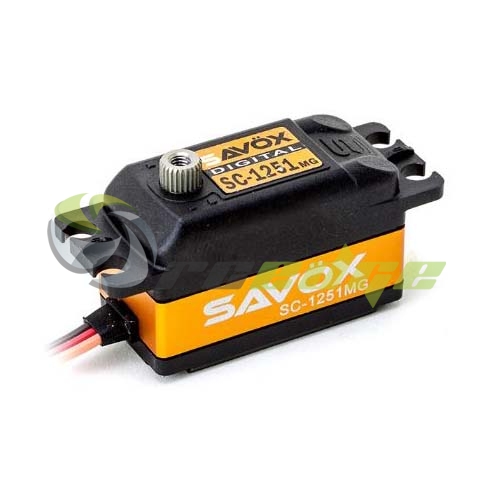

Savox SC-1251MG 6.0V Speed: 0.09 Torque: 9kg

Savox SC-1251MG - Low Profile Digital Servo .09/125 @ 6.0V

The SC-1251MG is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution.

Features:

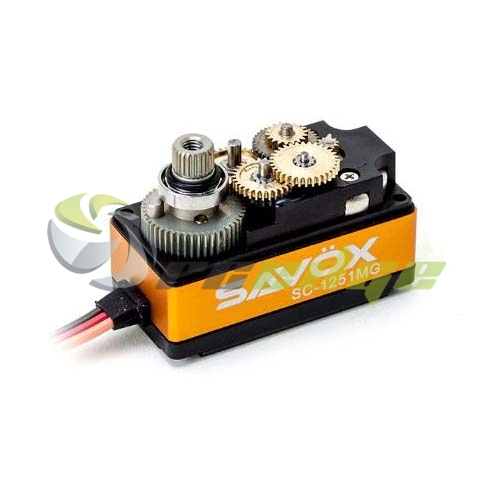

• Metal gear train ensures durability under harsh situations.
• Ideal for 1/10 on road vehicles.
• Aluminium case provides cooler operating temperatures.

Specifications:

• Torque @ 4.8v - 7.0kg / 97.2oz-in
• Torque @ 6v - 9.0kg / 125.0oz-in
• Speed @ 4.8v - 0.10 sec/60 deg
• Speed @ 6v - 0.09 sec/60 deg

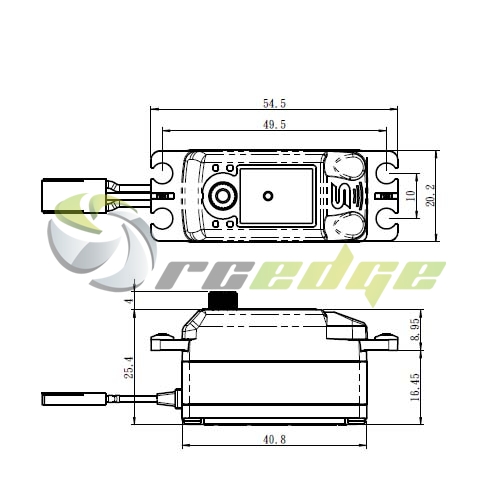

• Dimensions L x W x H (mm): 40.3 x 20.2 x 25.4
• Weight: 44.5g

Technical Details:

• Operating Temperature: -10 to 50 deg Celcius
• Running Current (no load): 150mA @4.8V, 180mA @6.0V
• Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 300 plus/minus 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 90 deg (1000 to 2000 micro second)
• Neutral Position: 1500 micro second
• Pulse Width Range: 950 to 2050 micro second
• Maximum Travel: Appx 160 deg (700 to 2300 micro second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
