THE SMART 6-CHANNEL CHOICE

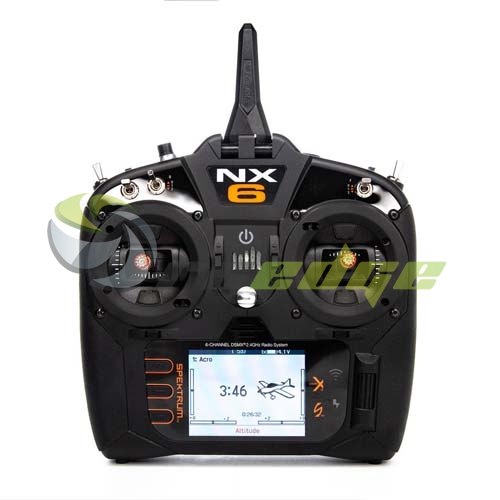

The NX6 2.4GHz DSMX® radio marks an evolution in Spektrum™ air transmitters for new to intermediate-level pilots. It’s the first 6-channel radio in the Spektrum line up to be equipped out-of-the-box with Smart Technology compatibility. The NX6 therefore comes ready to provide the advantages of state-of-the-art connectivity and telemetry — just pair it with Spektrum Smart batteries and Smart Avian™ ESCs.
The NX6 radio’s Wi-Fi connectivity adds more convenience. In addition to completing product registration straight from the transmitter, you’ll be able to download firmware updates instantly. It’s a totally modern user experience with some of the same features found on the top-of-the-line Spektrum iX Series radios.
Proven Spektrum radio expertise is also evident in the NX6 transmitter’s ergonomic design. Its contours, balance, and control positions combine to add precision to your inputs and offer unparalleled comfort. An easy-to-use roller wheel interface simplifies programming, with a large 3.2”, high-resolution colour
r display to make menus easy to read. Spektrum even includes a rechargeable 1S 2000mAh Li-Ion transmitter battery.
The NX6 is the Smart choice in a 6-channel air radio, delivering unexpected power and the innovative connectivity available only from Smart Technology. It’s available as a transmitter only (SPMR6775) or packaged with the Spektrum AR6610T 6-channel DSMX®/DSM2® receiver (SPM6775) — which is compatible with Spektrum Avian™ Smart ESCs for experiencing the full benefits of flying "Smart"

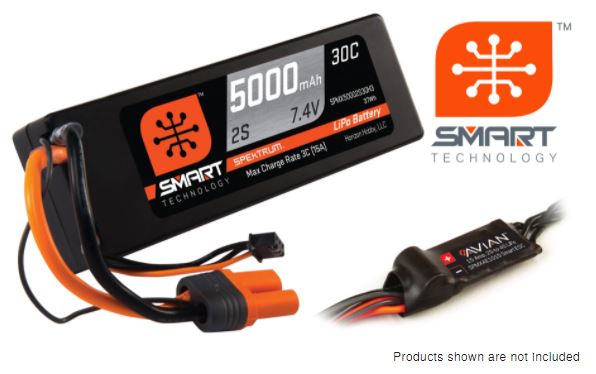

The Spektrum™ NX6 comes ready to provide the advantages of state-of-the-art connectivity right out of the box by supporting the innovative, all-in-one telemetry of Spektrum™ Smart batteries, ESCs and receivers. Smart Technology ensures that all of your model’s electronics work together seamlessly for the greatest efficiency and performance. It keeps you aware of every component’s status, boosts your confidence in its capabilities, and makes your entire system more responsive and simple to use
WiFi and USB Connectivity.
When connected to Wi-Fi, the NX6 transmitter gets even smarter. You can complete product registration right from the transmitter and download firmware updates instantly. A micro USB port allows you to charge the internal Li-Ion battery with an ordinary USB-to-Micro USB cable. It can also be used to recognize accessory devices and provide a convenient link to your PC or laptop. Connect the NX6 transmitter to your computer and you can control most simulators, including the RealFlight® RC Flight Simulator*.
*Currently compatible only with RF8 and RF9.

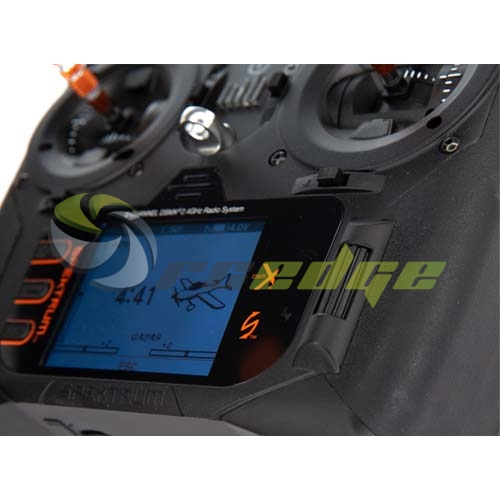

Large 3.2" Colour Display
Navigating menus and viewing telemetry data is made easy by the NX6 transmitter’s large, 3.2” backlit colour display that delivers information in crisp, 320x240 resolution detail. The display screen also allows you to choose from multiple colour palettes or create your own.

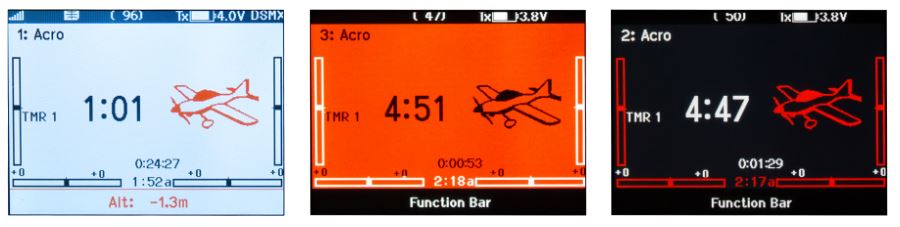

NX6 screen backlit in light colorNX6 screen backlit in orangeNX6 screen backlit in black colour
The NX6 offers 10 flight modes for airplanes, 10 for sailplanes, 5 for multirotor aircraft, and 4 for helicopters. Six programmable mixes are available. Channel 7 can be used as a two- or three-position channel. Navigating program menus is made easy by the transmitter’s large, 3.2” colour display and a roller-wheel scrolling interface with Clear, Back, and Function buttons. Function bar options include Telemetry Ticker Tape for following real time telemetry data and “My List” to give you quick access to the menu items you select, organized however you wish. You’ll have quick, uncluttered access to the features you use the most!

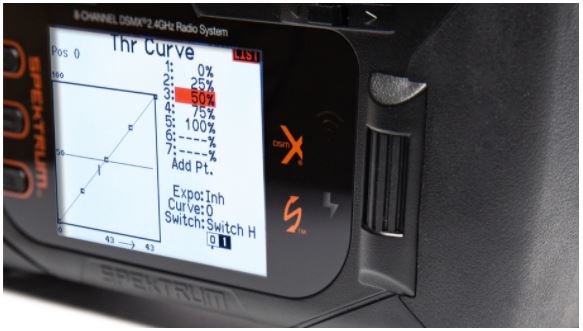

Image of the NX6 Transmitter's roller selector and light backlit screen
Model programming templates for BNF® aircraft that include desired switch assignments, rates, curves and other details are already saved into the NX6 transmitter. You can also simplify the process of creating set-ups for new models by selecting Template and starting from a generic model template of the appropriate model type.

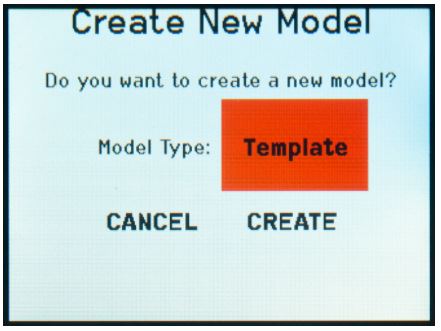

Image of the NX6 Transmitter's light backlit screen displaying the Create New Model template screen
With voice alerts, the NX6 lets you keep tabs on important functions without ever taking your eyes away from your aircraft. They can be programmed to call out what flight mode you’ve chosen or to report telemetry information on demand. If an alarm goes off, you won’t have to look at the transmitter display to see what’s happening — the NX6 will tell you. A headphone jack allows you to monitor voice alerts using earbuds so you don’t bother other pilots.
A vector drawing representing voice alerts.
The wireless trainer link allows instructor pilots to wirelessly “buddy box” the NX6 with another DSM2®/DSMX® transmitter. Once bound to another transmitter, ModelMatch™ technology enables the NX6 to re-link without going through the bind process again.

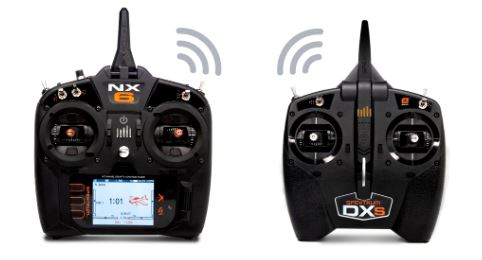

An NX6 and DX7s wirelessly connected to buddy box.

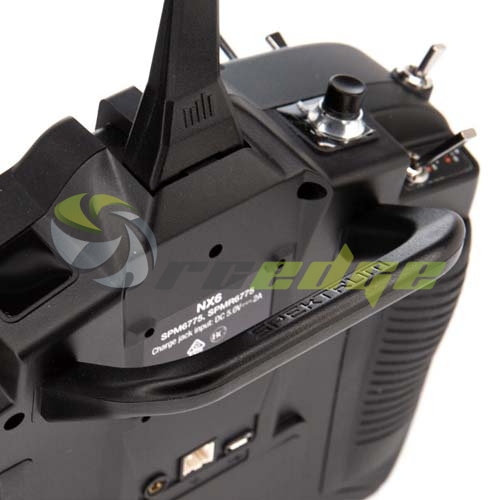

NX6 The NX6 transmitter’s weight distribution and switch placement (three 2-position, five 3-position) have been optimized for your comfort and precise, fatigue-free control. Rubber grips make it easy to hold the radio securely. Its antenna folds conveniently to the front for compact storage and transport. It also helps to prevent accidental powering on by partially blocking the power button.

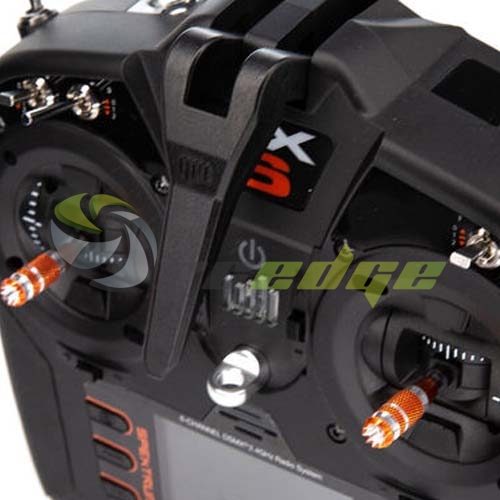

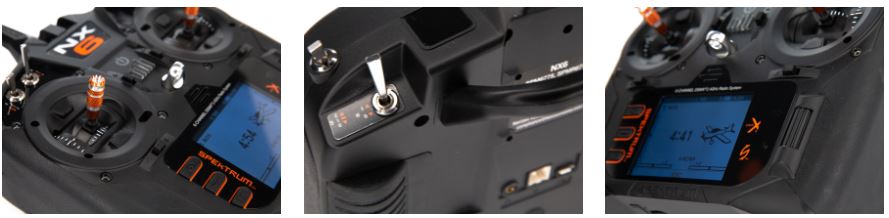

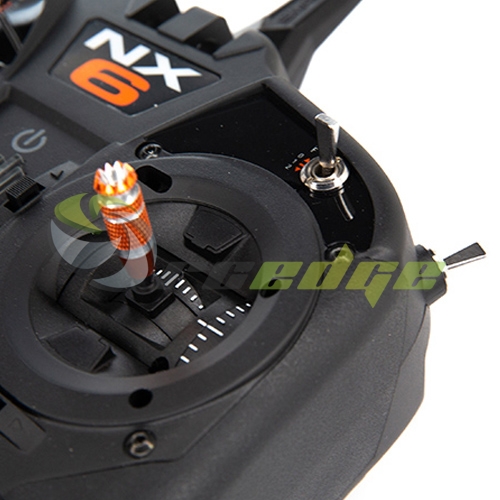

An NX6 photo depicting the transmitter gimbles. An NX6 photo depicting the back toggle switches. An NX6 photo depicting the roller selector on the right of the radio.
The NX6 transmitter is built around proven Spektrum™ DSMX® 2.4GHz frequency-agile technology — the most advanced spread spectrum RC technology to date. By adding the agility of unique frequency shifts to the superior interference resistance of a wideband signal, and by limiting those shifts to a smaller portion of the 2.4GHz band, DSMX transmitters provide on-channel interference protection that’s second to none.

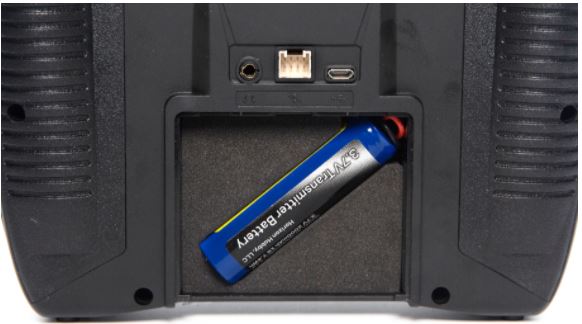

High Capacity Li-Ion Transmitter Battery
The NX6 transmitter includes a long-lasting 3.7V 2000mAh 1S Lithium Ion battery and a USB cable for convenient USB charging.
- High-resolution, backlit, 3.2” colour display screen
- Wi-Fi connectivity for easy product registration, model downloads and firmware updates
- Smart Technology compatibility out of the box
- 3.7V 2000 mAh 1S Lithium Ion transmitter battery included
- Integrated serial port for supporting 3rd party modules
- USB port for charging and data transfer, and for use with any simulator that supports USB game controllers (including the RealFlight® RC Flight Simulator)
- Folding antenna
- Dual diversity antenna
|g SW I):||Three 2 position, five 3 position|
|Trim Inputs:||Gimbal trims only|
|WiFi:||Yes (Registration and updates, model downloads)|
|Micro SD:||Yes (internal and external; external not included)|
|USB:||Yes; Micro USB cable included|
|Tx Battery Size:||3.7V 2000 mAh 1S Lithium Ion (included)|
|Wired Trainer:||Yes, with adapter available separately|
|Model Templates w/Built-in BNF® Model Templates:||Yes|
|Function Bar with Telemetry Ticker Tape and My List:||Yes|
|Flight Modes:||10 in Air, 4 in Heli, 5 in Multi and 10 in Sail|
Needed to Complete:
- Compatible Spektrum™ receiver, such as:
- AR6610T DSMX® 6-Channel Smart-Ready Telemetry Receiver with AS3X® and SAFE® (SPMAR6610T)
- AR637T DSMX® 6-Channel Smart-Ready Telemetry Receiver with AS3X® and SAFE® (SPMAR637T)
- AR630 DSMX® 6-Channel Smart-Ready Receiver with AS3X® and SAFE® (SPMAR630)
