Savox SW-0250MG 6.0V Speed: 0.11 Torque: 5kg

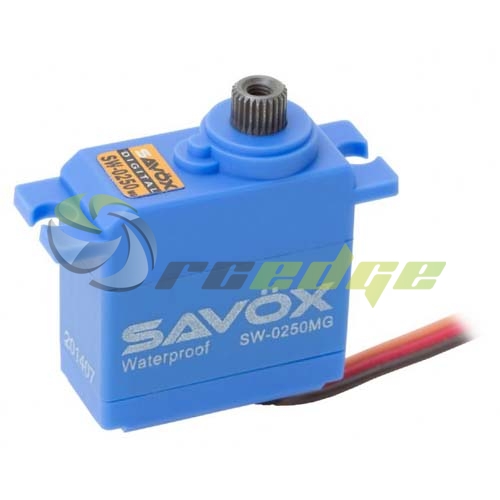

Savox SW-0250MG - Waterproof Micro Digital Servo .11/69@6V, Ideal for Traxxas 1/16 Scale

The SW-0250MG is a waterproof, high torque, digital mini servo that performs! An excellent replacement for the standard servo found in Traxxas 1/16 scale vehicles.

Features:

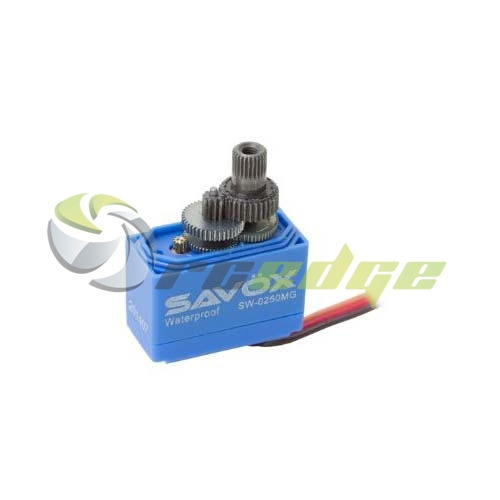

• Strong metal gear train for added durability.
• Waterproof case design.
• Ideal for cars and boats subject to water or snow.
• Ideal for Traxxas 1/16 vehicles.

Specifications:

• Torque @4.8v - 3.5kg / 48.6oz-in
• Torque @6v -5.0kg / 69.4oz-in
• Speed @4.8v - 0.14 sec/60 deg
• Speed @6v - 0.11 sec/60 deg
• Dimensions L x W x H (mm): 29.5 x 14.0 x 32.5
• Weight: 25.0g

Technical Details:

• Operating Temperature: -10 to 50 deg Celcius
• Running Current (no load): 80mA @4.8V, 100mA @6.0V
• Stall Current (at locked): 1000mA @4.8V, 1250mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 200 plus/minus 5mm
• Output Gear Spline: 21 Tooth
• Bearings: 1BB
• Operating Travel: 100 deg (1000 to 2000 micro second)
• Neutral Position: 1500 micro second
• Pulse Width Range: 800 to 2200 micro second
• Maximum Travel: Appx 130 deg (900 to 2100 micro second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
